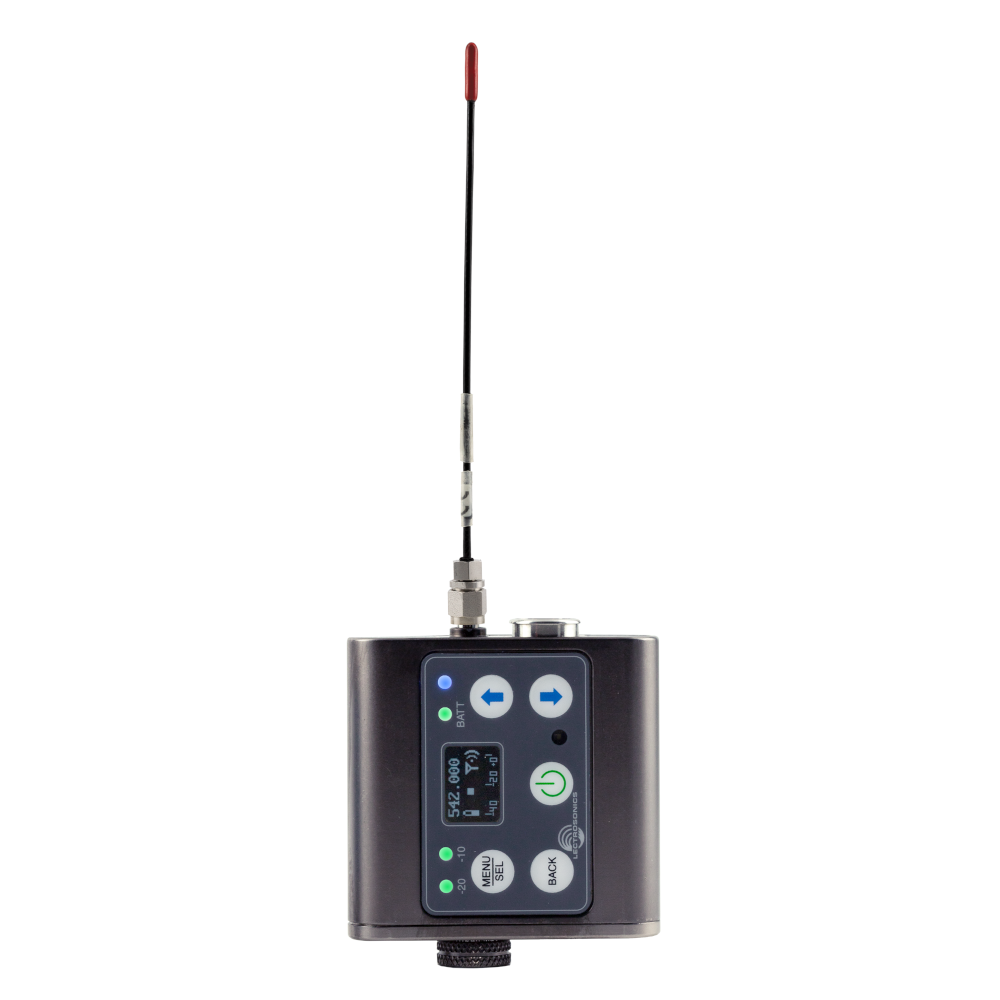

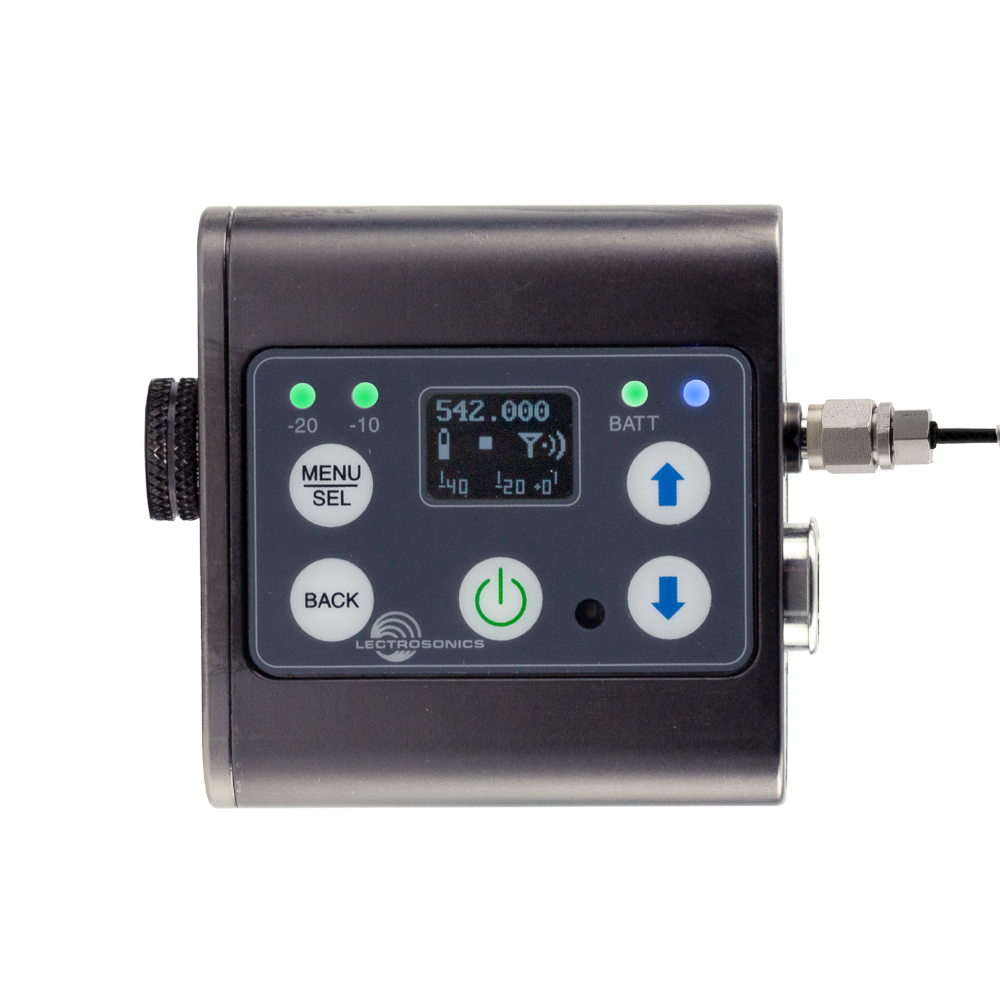

Lectrosonics - DBSMD/E01 - B1C1 - 537-691MHz

The DBSMD digital bodypack transmitter is the latest in the incredibly successful SM series of miniature transmitters. DBSMD is part of Lectrosonic's digital ecosystem which includes D-Squared (DSQD), DCR822, DCHR/DCHT and Duet.††

DBSMD comes in the A1 and B1 bands which span from 470-614MHz in the E01 version. The new transmitter has new highly efficient circuits and can be powered up to 18:20h on two AA batteries. The transmitter can transmit with 10, 25 and 50mW transmission power. According to Lectrosonic's tests, 50mW with their digital transmission corresponds to 125mW with an analog system. In addition, there is a new high-denity mode (HDM) that enables 200kHz between channels, which means twice as many channels within the same spectrum. HDM transmits at 2mW, so that mode is best suited in systems that have the possibility of external antennas and RF gain structure, e.g. theater.†

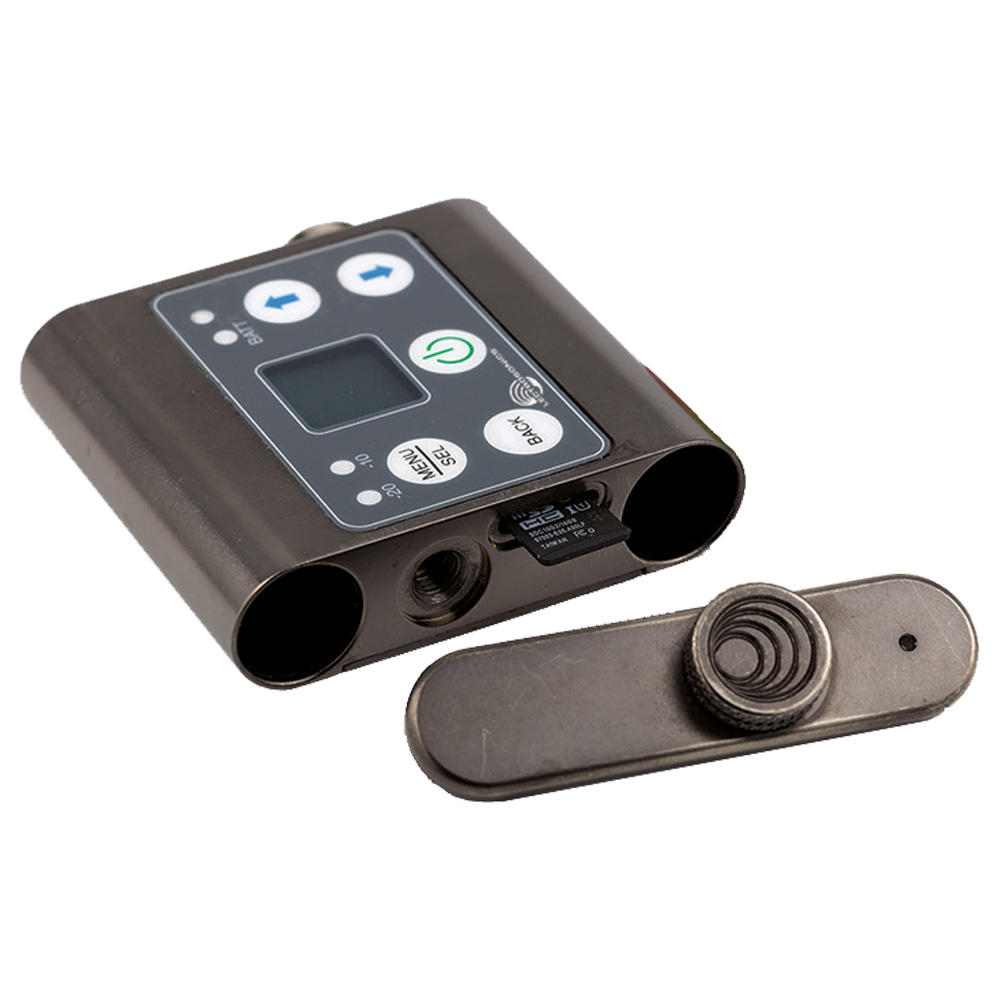

DBSMD can be configured as either transmitter or recorder that records in 24bit/ 48kHz on a microSD card. The transmitter can be jam-synced with timecode for easy syncing of files.†

Since the DBSMD has the same form factor as the SMDB transmitter, all accessories from the SMDB transmitter will work with the DBSMD.

• 100% digital sound and transmission, with extremely low noise floor

• Frequency response: 20 to 20 kHz in D2 mode, 112 dB dynamic range with linear phase response

• Longer battery life compared to older digital devices

• High-pass files at 20, 35, 50, 70, 100, 120 and 150 Hz

• Selectable transmit power: 10 mW, 25 mW and 50 mW

• HDM (High Density transmission Mode) with 200 kHz frequency spacing between transmitters

• Internal recording on microSDHC card in .WAV (BWF), 24 bits, 48 kHz

• Time code jam sync via the TA5 input, <1PPM accuracy

• AES-256 CTR encryption with four different key policies.

  </ li>

• Servo bias on microphone input, all ?servo only? and ?universal? wired mosquitos and headsets with TA5 connector are compatible.
