Sound Devices - ARX2

The overview

Experience the ultimate flexibility when you can use frequencies far away from the noisy UHF TV bands. The ARX2 receiver is a two-channel true diversity receiver with Sound Devices exclusive Spectraband technology, which gives the receiver a frequency range between 470-1525Mhz in one unit. Over 1Ghz of possible frequencies to use. With superior brick-wall SAW filters, it can be used even in the noisiest RF environments and AutoAssign makes frequency selection and settings quick and easy.

• SpectraBand Technology: compatible with Astral Mini, Astral TX, Astral HH between 470 MHz - 1525 MHz and all bands of the A10-TX.
• Advanced Digital True Diversity using two complete RF receivers per channel, giving the receiver a total of four RF receivers.
• SuperSlot compatible with SL-2 and 8 series from Sound Devices.
• State-of-the-art 100% digital long-range modulation provides the longest possible transmission distance on the market, when comparing digital systems with the same antennas, frequency and transmit power.
• GainForward; compatible with all Astral transmitters. Set the gain of the receiver directly on the mixer (with an 8 series) or on the receiver of other mixers.
• Full 10 Hz - 20 kHz frequency response; 100% digital RF modulation and transmission.
• Excellent shielding to nearby IFB or camera transmitters without the need for external filters or extra cabling.

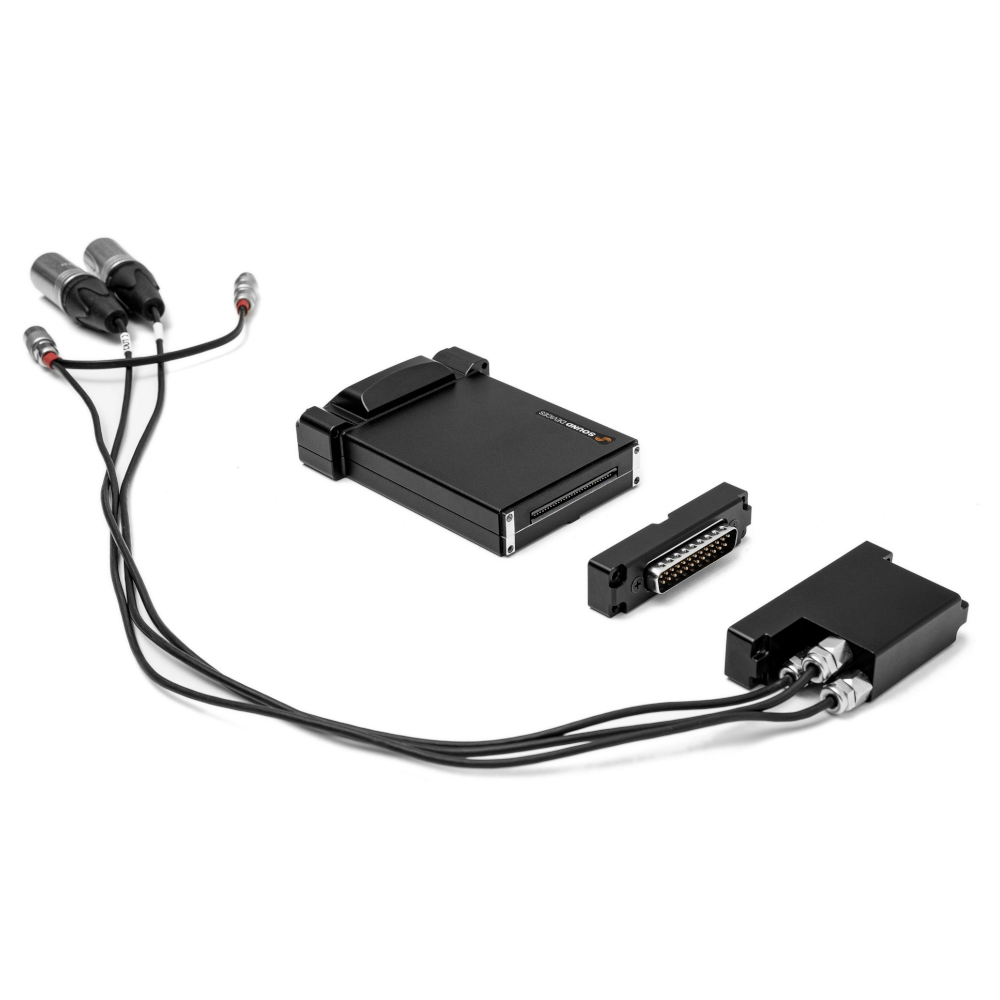

• Available in XLR and Superslot version (and soon in TA3)
• Analog line-level or AES output.

With SpectraBand technology, you don't need to buy another receiver dedicated to a specific country or frequency band. SpectraBand gives you access to almost twice as many frequencies as are available with other systems worldwide - almost 2600 available channels.

Learn more about SpectraBand, available frequencies and brick-wall filters.

• Frequency response: 470 to 1525 MHz; adjustable frequency in 25 kHz steps (depending on local regulations, some frequencies may be locked.
• Modulation: Proprietary digital RF modulation, standard or long range, selectable
• Latency: Standard modulation = 2 ms Long range modulation = 3.9 ms Measured at analog output
• Frequency response: 10 Hz-20 kHz
• Maximum output power level: +14 dBu, +2 dBu, -10 dBu or -22 dBu
• Output impedance: Analog: 130 ohms, Digital: 110 ohms
• Security: Selectable 4-digit PIN code
• Power supply: 6-18 VDC
• Operating temperature range: -10 °C to +55 °C
• Weight: 165 g (Measured without accessories)
• Dimensions: (H x W x D) 113.7 mm x 78.5 mm x 26.6 mm (Measured without accessories)
