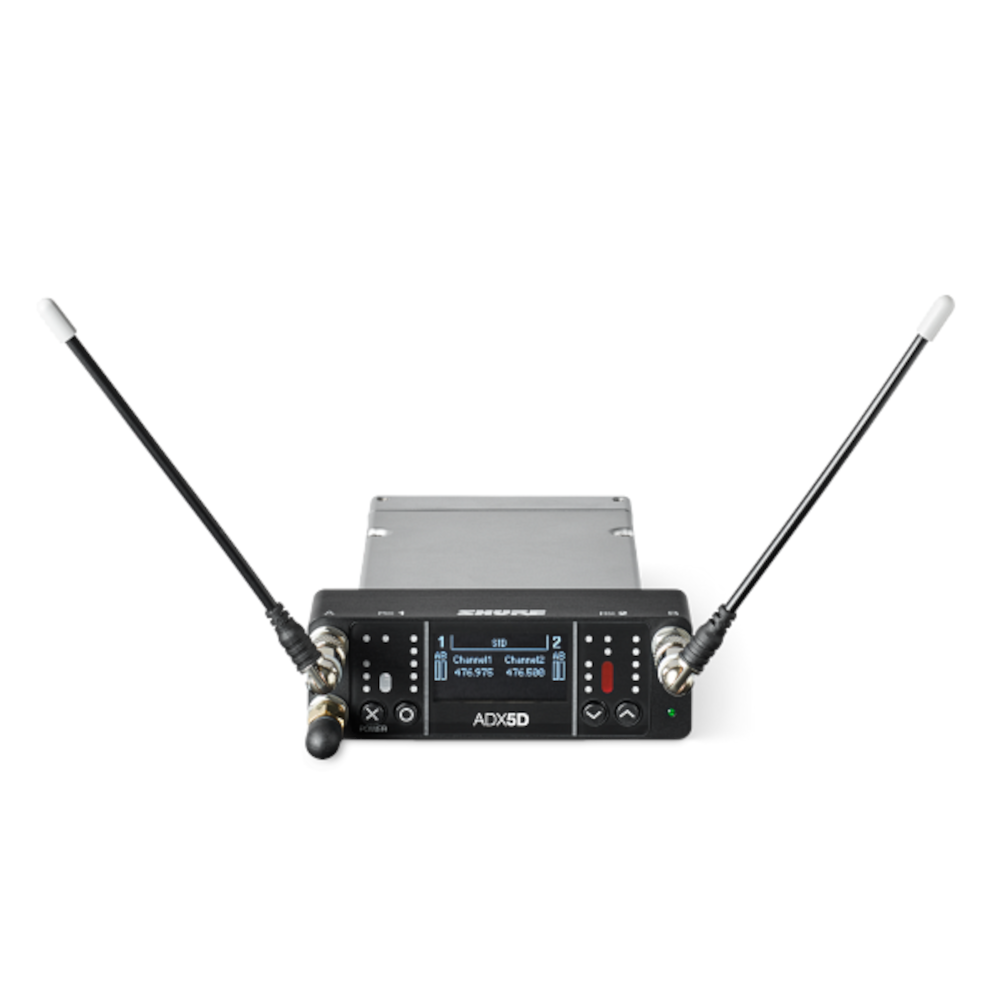

Shure - ADX5D Dual Channel Portable Receiver (470-636 MHz)
- Fast Deliveries!
- Any Questions? We will help you!
- Multiple payment options!
- BrandSHURE
Description
Article no.: 705-0110

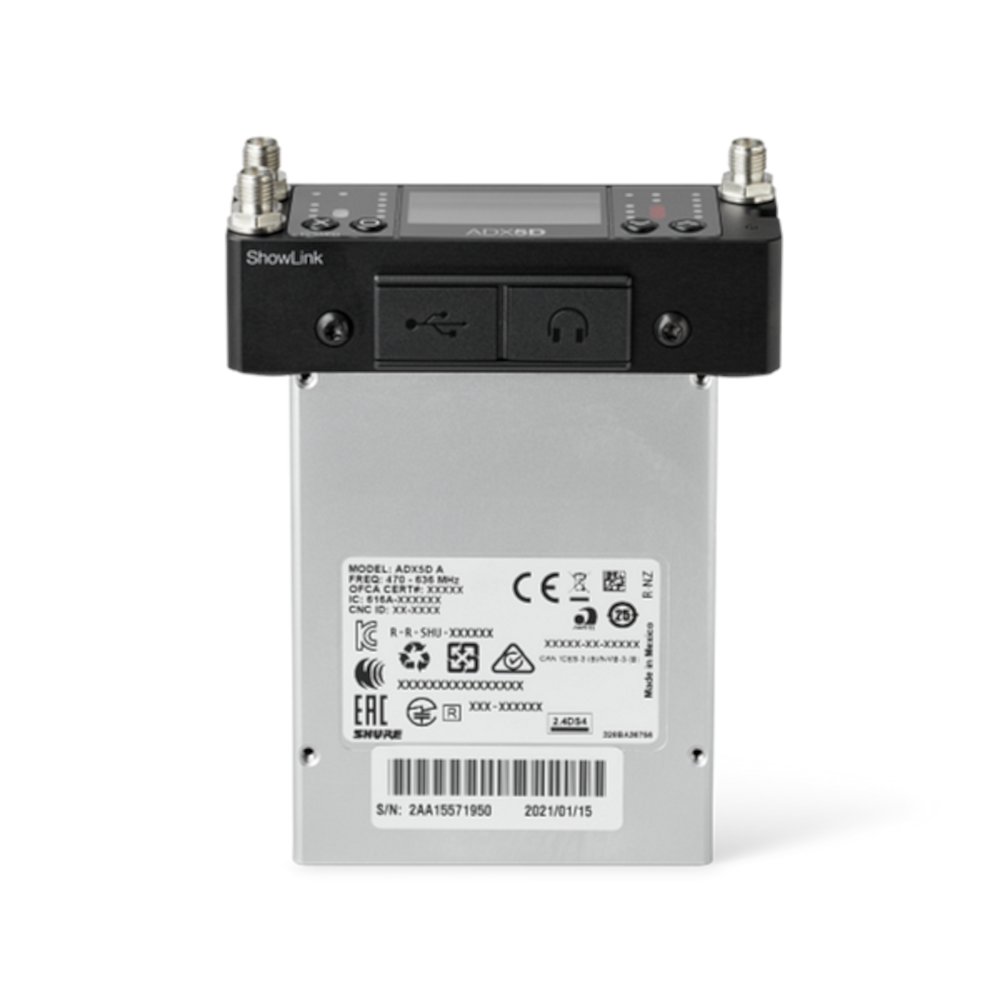

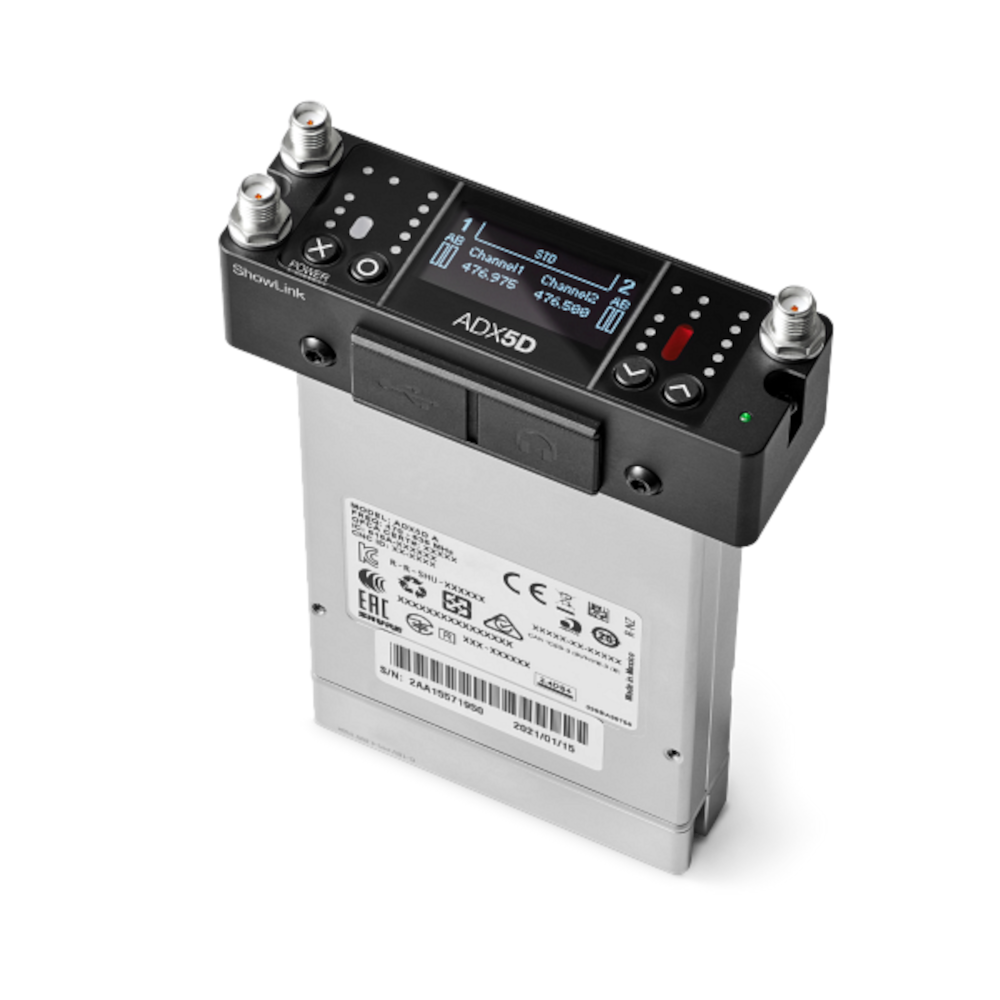

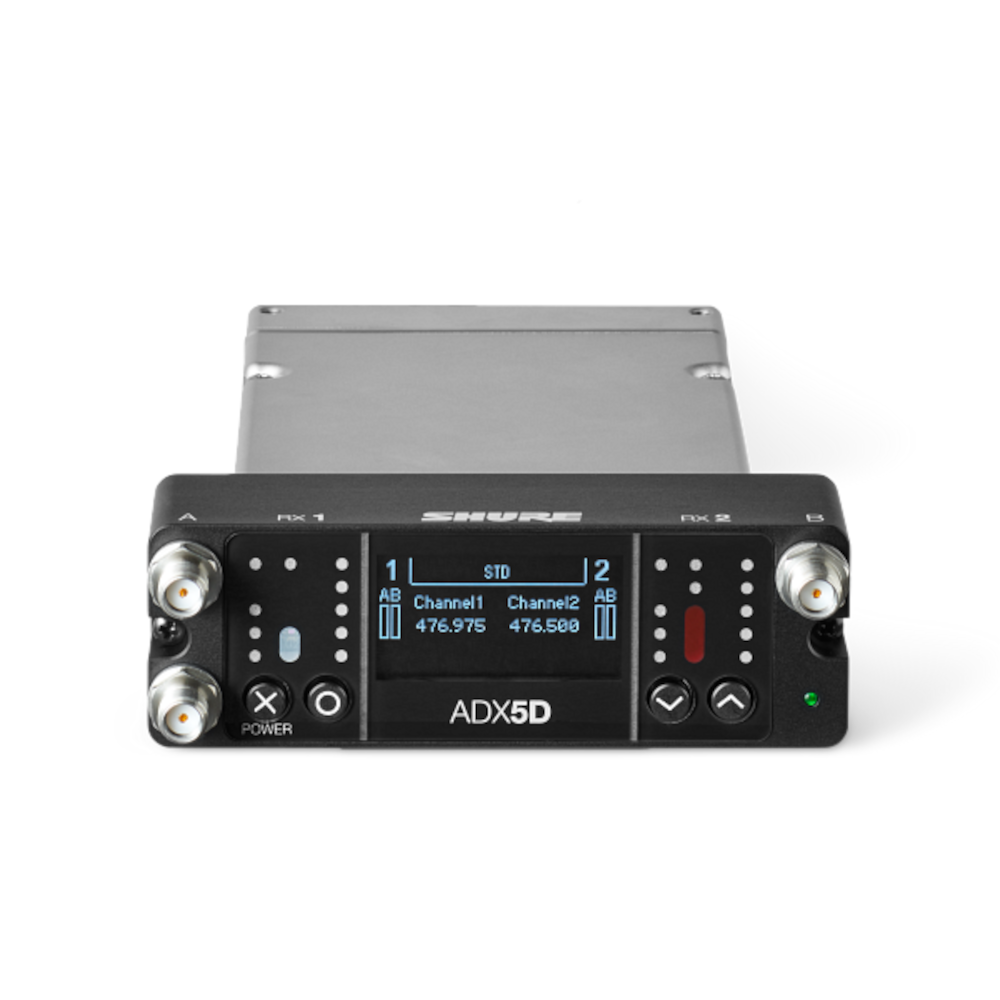

New AxientÆDigital ADX5D is a two-channel wireless receiver with industry-leading RF performance, efficient frequency band and transparent sound quality in a portable slot-in form factor. Like all Axient Digital products, the ADX5D features ShowLinkÆDirect Mode which enables remote control of Axient Digital transmitters without the need for external equipment.†
The sound and performance that touring sound engineers have adopted as the industry standard is now available to film and broadcast professionals - † Robust RF. Impeccable sound, Axient Digital's signature quality and performance. All in a portable, slot-in design. Axient Digital - Now portable.
†
Features:
- Wireless, two-channel receiver with slot-in design
- Wide tuning range up to 184 MHz (depending on region)
- High spectral efficiency thanks to advanced digital modulation scheme provides more wireless channels in available RF space
- High Density (HD) - mode provides even higher bandwidth efficiency (application dependent) - ƒkta digital True Diversity per channel for dropout resistance and excellent range
- Impeccable sound quality thanks to superior circuitry and advanced digital audio coding
- Network control with Wireless WorkbenchÆ software and ShurePlus? Channels iOS app
- 5-segment channel quality meter displays RF link quality per channel
- As part of the ADX series, the receiver is equipped with ShowLink Direct mode and enables remote control of Axient Digital transmitter without the need for external equipment

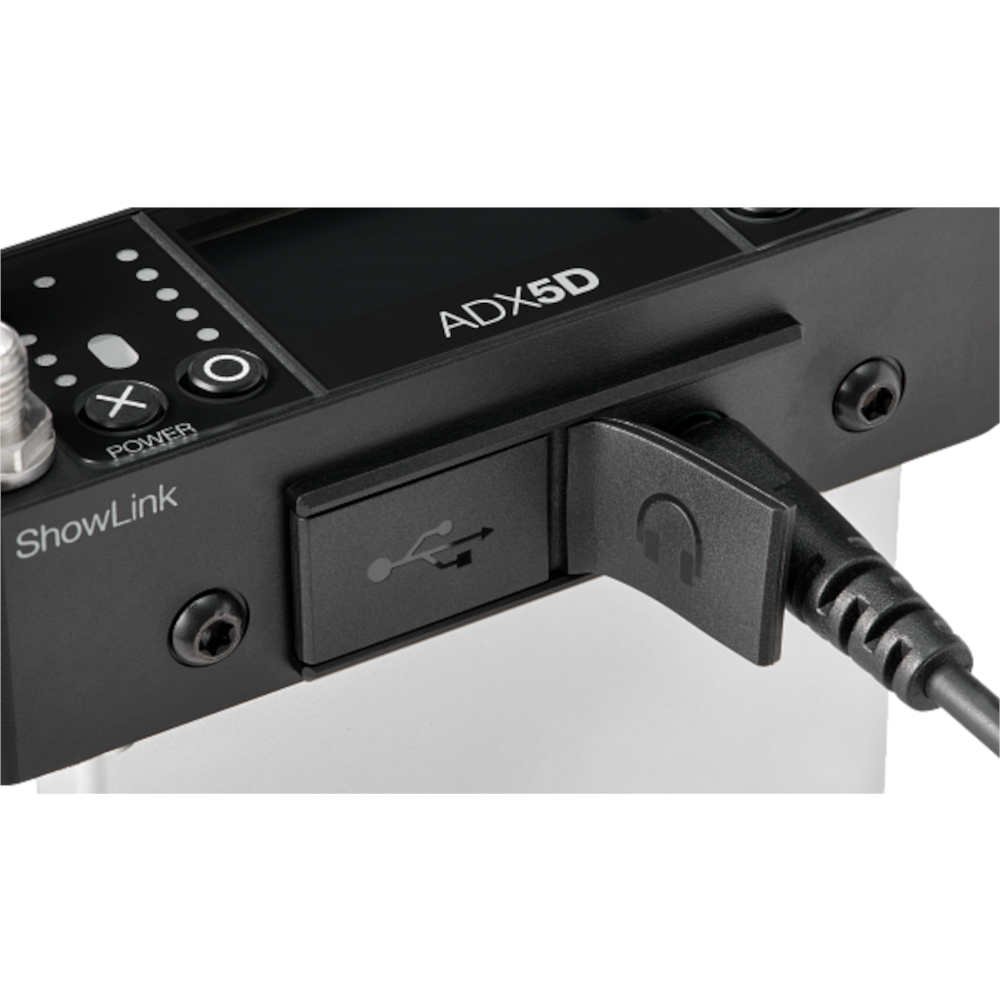

- Aux 3.5 mm audio output provides connection to headphones or to a balanced line input
- ADX5D backplate is available with three connection options for different applications and connection types ** (sold separately)

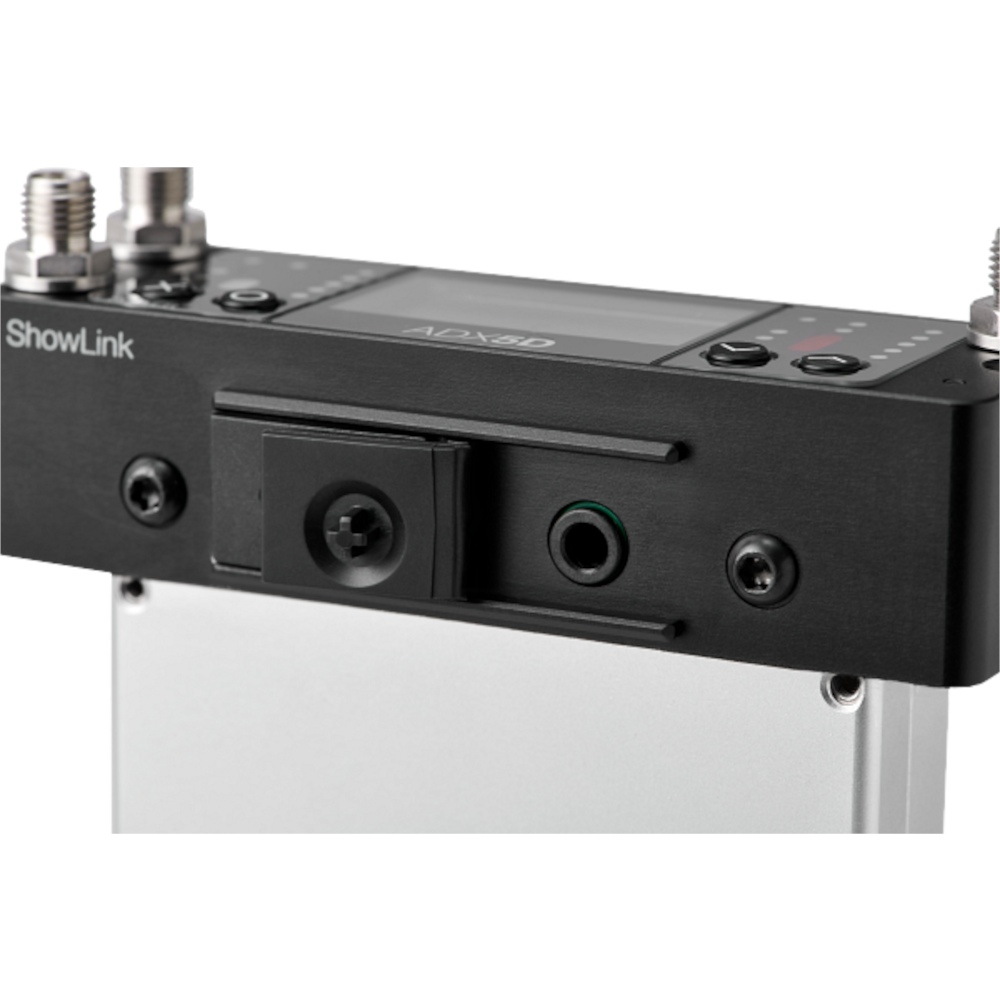

- Accessory mount with Cold Shoe adapter (sold separately)
- Removable antennas with standard SMA connectors

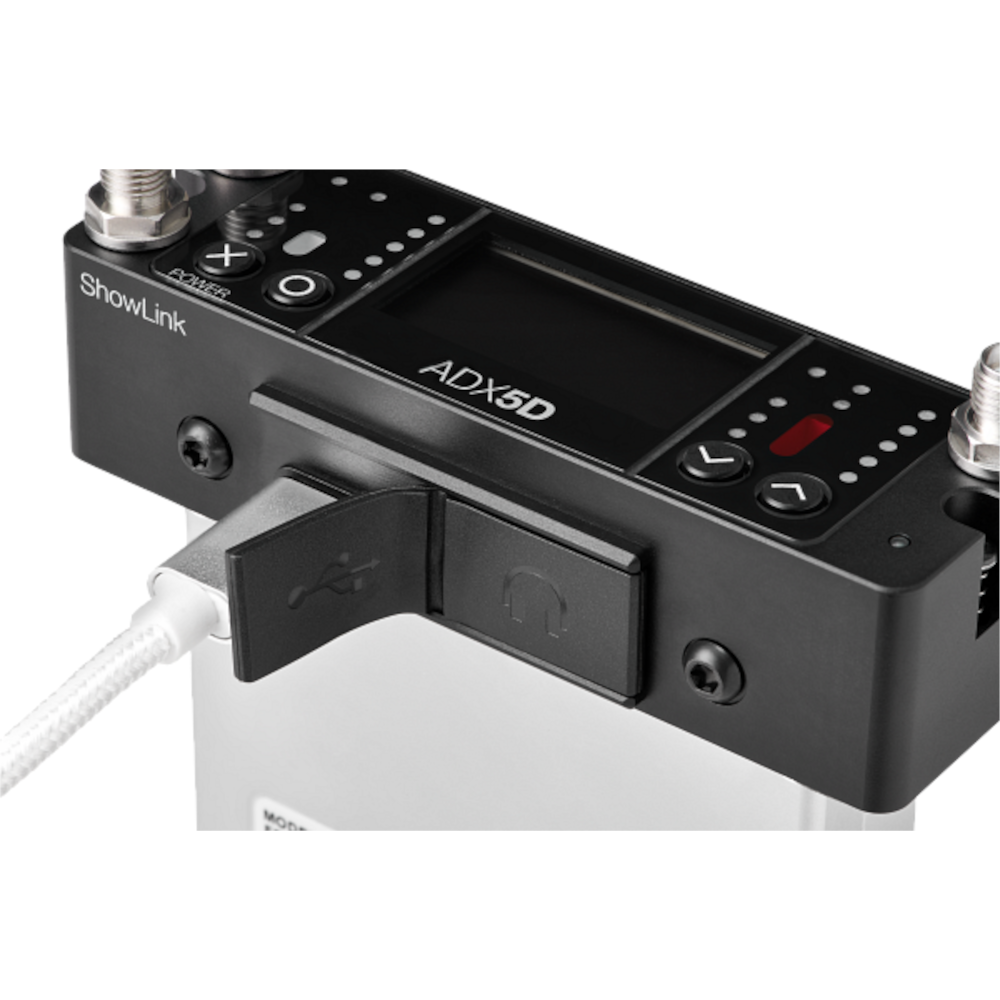

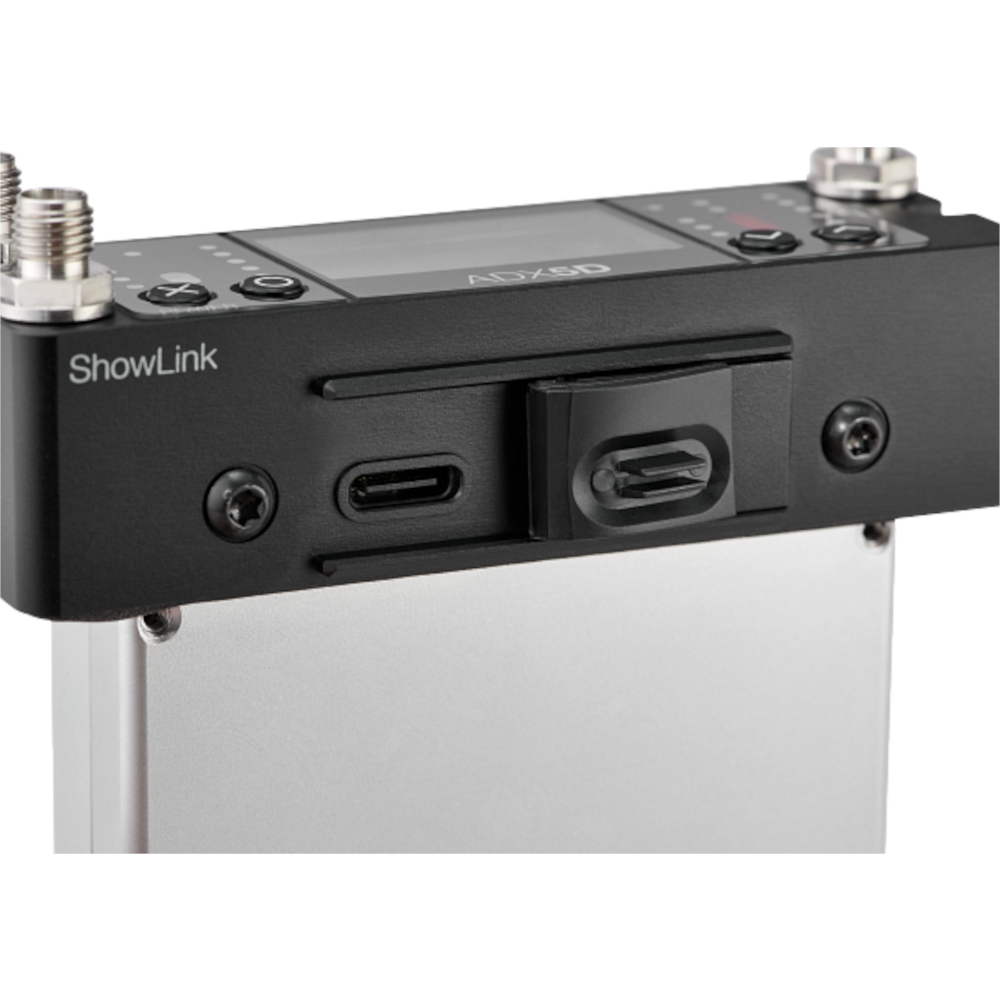

- High resolution OLED screen < li>USB-C port for† firmware updates
- Flow efficient and user interface
- Low latency, down to 2 milliseconds
* ShowLink functionality is not available when integrated with third-party controllers in US models.
< p>** Anti-interference features are limited to MANUAL mode when using DB15 or DB25 backplates with US models.< br />< /tr>
SPECIFICATIONS†(SUBJECT TO CHANGE)† | |
UHF † | |
RF Carrier Frequency Range† | 470?1000 MHz†Varies by region (See Frequency Table)† |
Working Range † | SD Mode: 246 ft (75 m) HD Mode: 131 ft (40 m)†Note: Actual range depends on RF signal absorption, reflection and interference.† |
RF Sensitivity† | -90 dBm @ 10-5†BER† |
Spurious Rejection† | >80 dB† typical† |
Connector Type† | SMA (Shell=Ground, Center=Signal)† |
Impedance† | 50 ?†< /span> |
AUDIO OUTPUT† | |
< strong>Gain Adjustment Range† | -18 to +42 dB, in 1 dB steps†(plus Mute setting)† |
Impedance† | 66 ?†Typical, TA3 Out† |
Full Scale Output† | +9 dBV, 200 k? load† |
Phantom Power Protection† | Yes† 3.5 mm output does not have Phantom Power Protection< span class="Apple-converted-space">† |
Audio Frequency Response† | 20 Hz to 20 kHz†Dependent on Microphone Type† |
Dynamic Range† | 129 dB† |
Total Harmonic Distortion† | 0.0006% at -6 dBFS, 1 kHz† |
System Audio Polarity† < /td> | Positive pressure on diaphragm produces positive voltage on Audio_ with respect to Audio?.† |
Analog Output Latency† | SD Mode : 2.08 ms HD Mode: 2.96 ms† |
USB INPUT† | |
Connector Type† | USB-C† |
USB Protocol† | USB 2.0† |
USB Role† | Peripheral (upstream -facing port)† |
| < p class="p3">USB Power Delivery† | None† |
POWER† | |
DC Power Requirements†< /strong> | 6 to 18 VDC†< /span> |
Thermal Power Dissipation† | Max: 4.8 W ( 78 BTU/hr) Nominal: 4.2 W (51 BTU/hr)† MIn: 2.3 W (X BTU/hr)† |
MECHANICAL† | |
Dimensions (H ? W ? D)† | 1.1 ? 3.4 ? 4.25 in (29 ? 88 ? 108 mm)† |
Weight† | 0.53 lbs (0.24 kg)†without antennas or backplate† < /td> |
Housing† | Machined Aluminum† |
SHOWLINKƆ | |
Frequency Range† | 2.40 to 2.4835 GHz (16 Channels)† |
Working Range† | 100 ft (30 m)† Note: Actual range depends on RF signal absorption, reflection and interference.†< /p> |
Connector Type† | SMA (Shell=Ground, Center=Signal) † |
Impedance† | < p class="p5">50 ?† |
ShowLinkƆAntenna Power† | 2.5 dBm EIRP† |
Antenna Type† | 1 Omni 2.4 GHz† |
Network Type† | IEEE 801.15.4† |
