Lectrosonics - DSR-A1B1
€2,321
DSR-A1B1 2-ch Digital Receiver (470-23)
- Fast Deliveries!
- Any Questions? We will help you!
- Multiple payment options!
- BrandLECTROSONICS
Description
Article no.: 490-4260

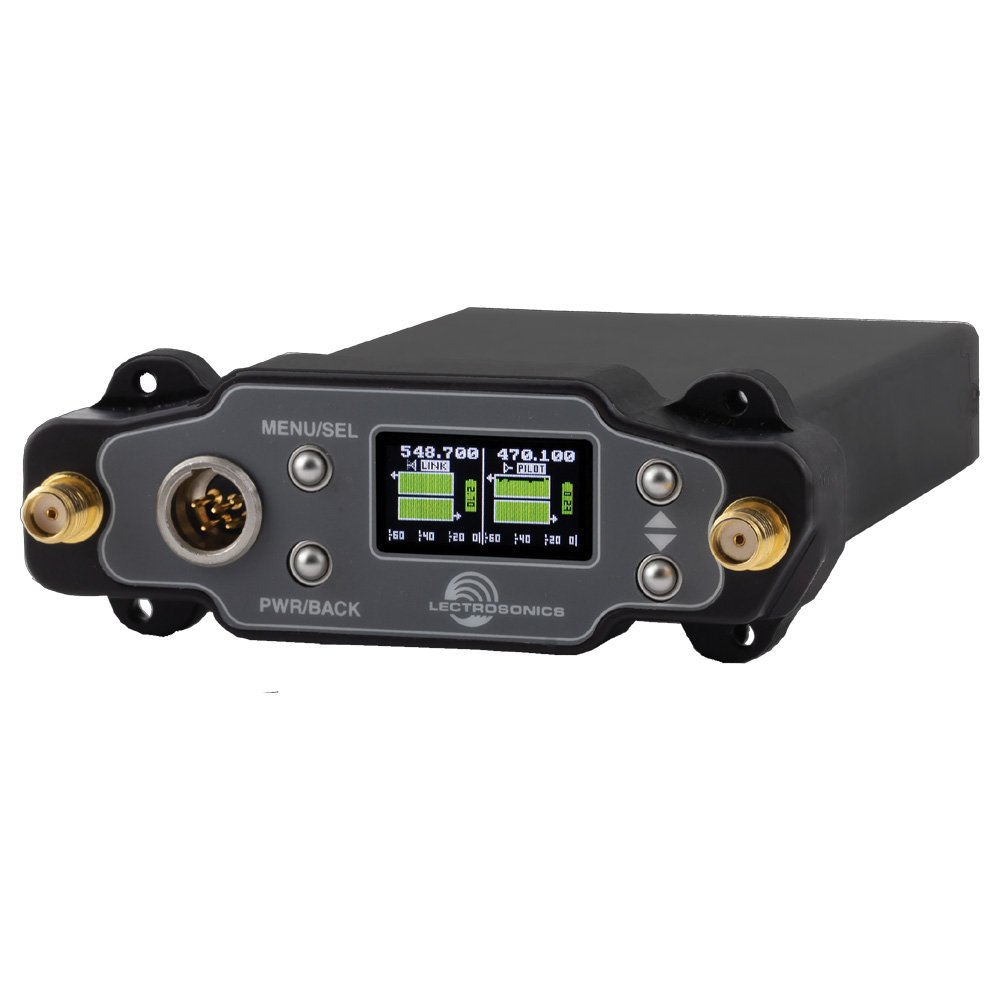

The DSR is a compact 2-channel slot-in diversity receiver in a new all-digital technology. The DSR has tracking frontend filters and vector diversity, which provides very good selectivity and range in complicated RF environments.† Built-in RF scanner The DSR has a housing entirely in aluminum and is powered by 9-17 VDC from an external power supply. On the display there are indicators for Audio and RF level as well as an easy-to-navigate menu system for settings. Outputs are selectable between AES3 or analog balanced and are adjustable from -50dBm to +5dBu.
- Tuning: A1B1 / 470 - 614 MHz / Block 470 - 23
- 24-bit / 48kHz digital audio
- Compatible with D2, DCHT, M2T and Digital Hybrid Wireless
- Vector Diversity
- AES-256 CTR Encryption
- IR Sync
- Power: 9- 17VDC
- Size:† 68 x18 x 89mm (WxHxD).
- Optional bottom pieces (ordered separately)
