Lectrosonics - DSQD / AES3
€4,405

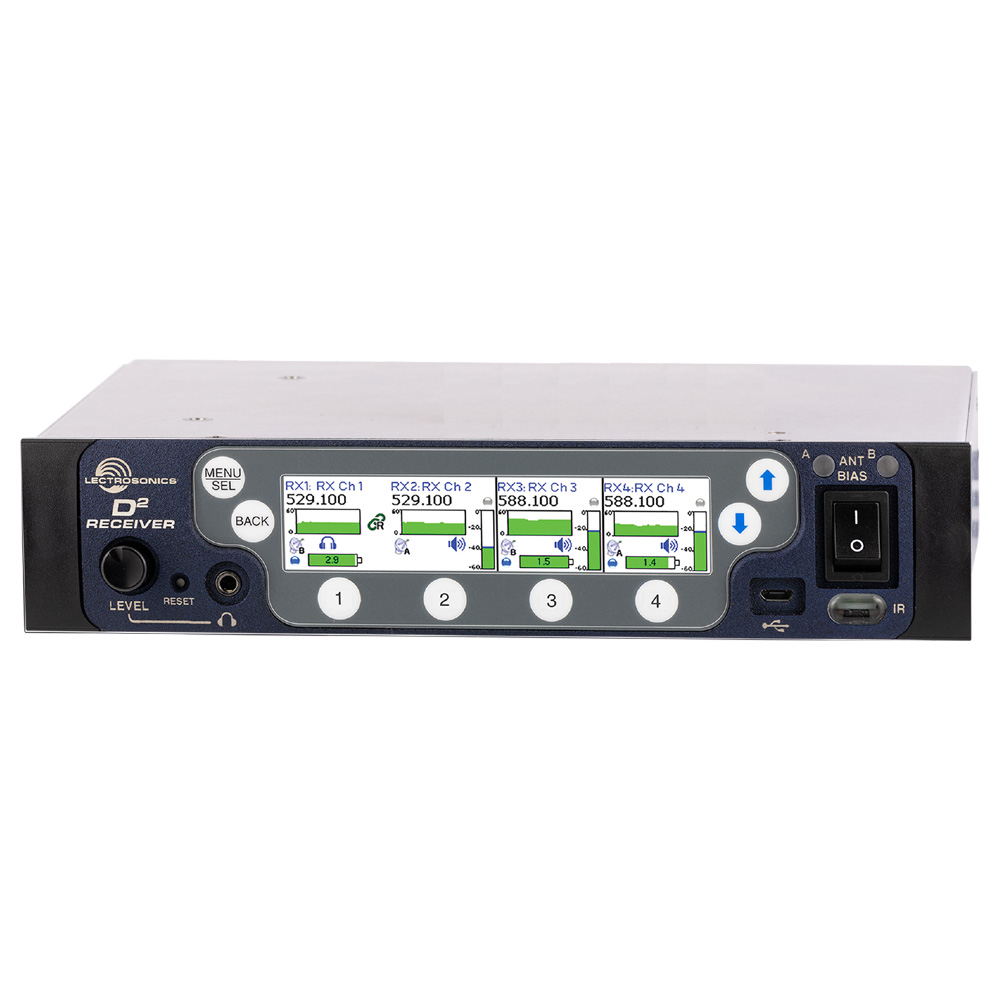

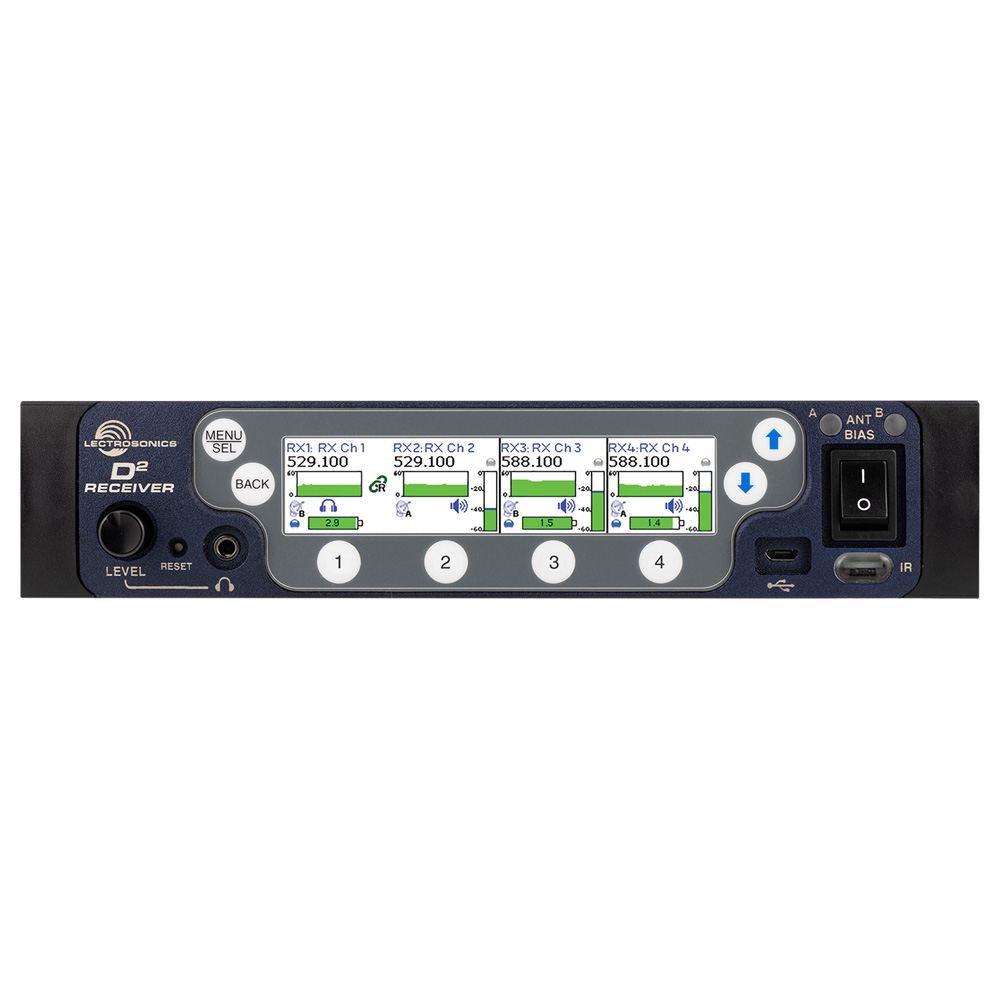

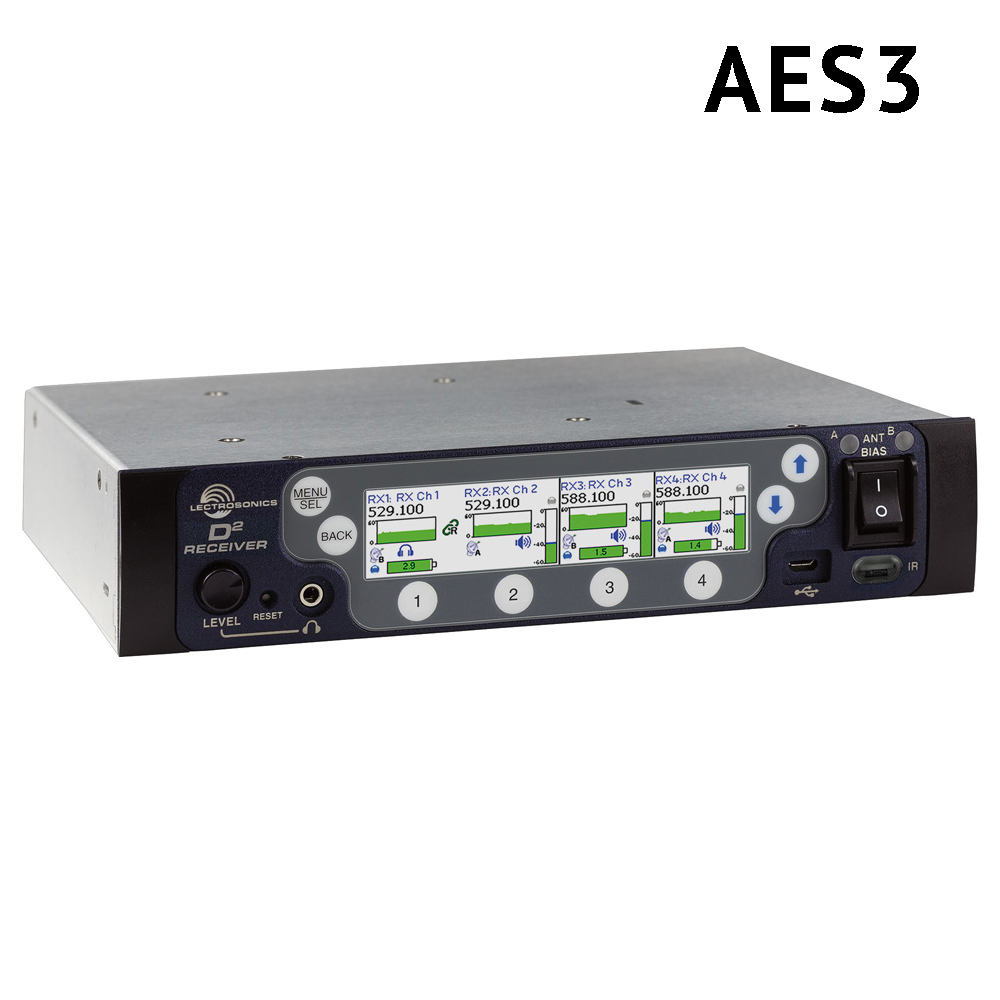

DSQD/AES3 Digital 4-ch receiver
- Fast Deliveries!
- Any Questions? We will help you!
- Multiple payment options!
- BrandLECTROSONICS
Description
Article no.: 490-3855
DSQD is a 4-channel 100% digital diversity receiver with analog† and AES3 out in half-rack format. 2 antenna channels feed all 4 receivers and a buffered loop output to another 2 DSQD receivers which gives a very compact system with 8 channels per rack unit.

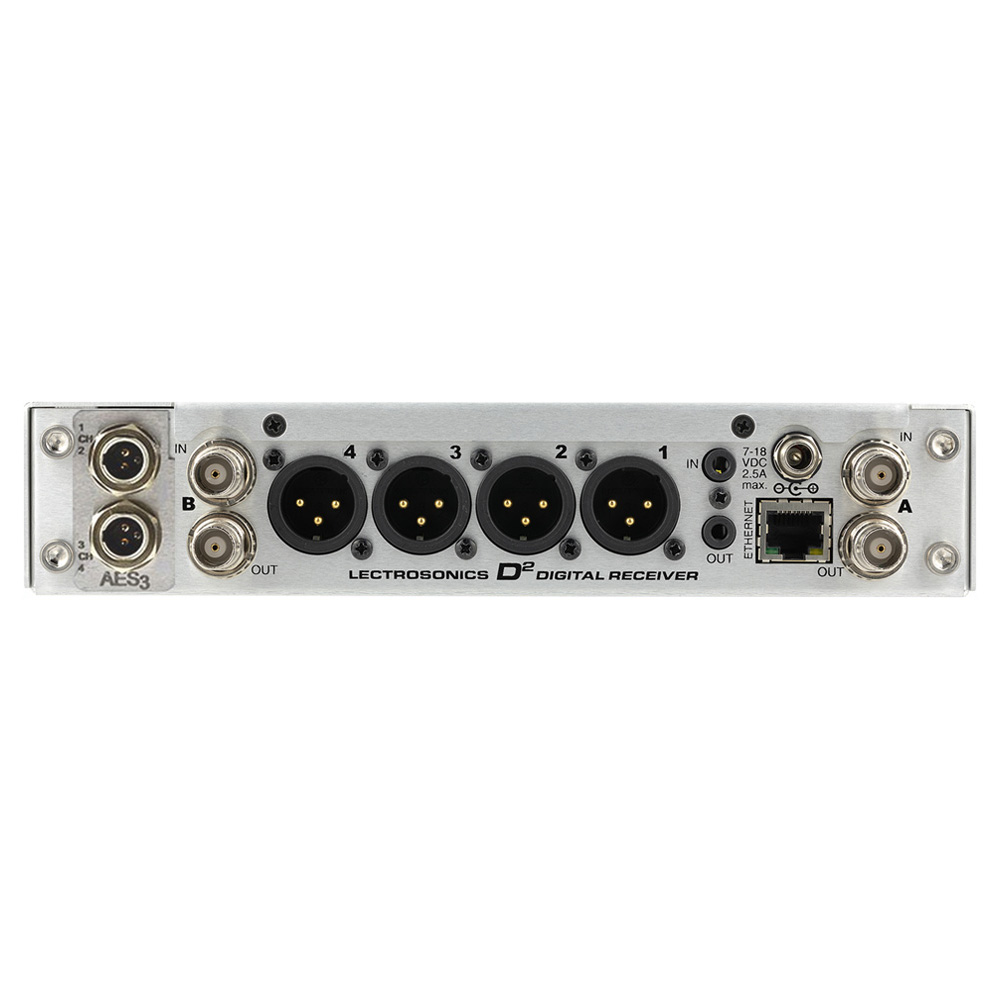

DSQD can be used together with the new digital transmitters DBu and DHu and is at the same time backwards compatible with all Digital hybrid wireless transmitters, e.g. SMB, SMBWB, HMA, SSM, LT etc. Analogue balanced outputs on XLR connector and double Dante connections are available. Settings are made easily from the front panel with buttons and clear color display or via the Wireless designer software
DSQD can be used together with the new digital transmitters DBu and DHu and is at the same time backwards compatible with all Digital hybrid wireless transmitters, e.g. SMB, SMBWB, HMA, SSM, LT etc. Analogue balanced outputs on XLR connector and double Dante connections are available. Settings are made easily from the front panel with buttons and clear color display or via the Wireless designer software
- Sampling: 24 bit / 48 kHz
- Frequency range: 20 - 20 kHz
- Dynamics: 108 dB(A)
- 256 bit AES encryption
- Latency: 1.4 mS (analog in-out)
- Size: 213 x 44 x 187 mm.
- Headphone output on the front
- Powered with 7-18VDC max 2.5A
