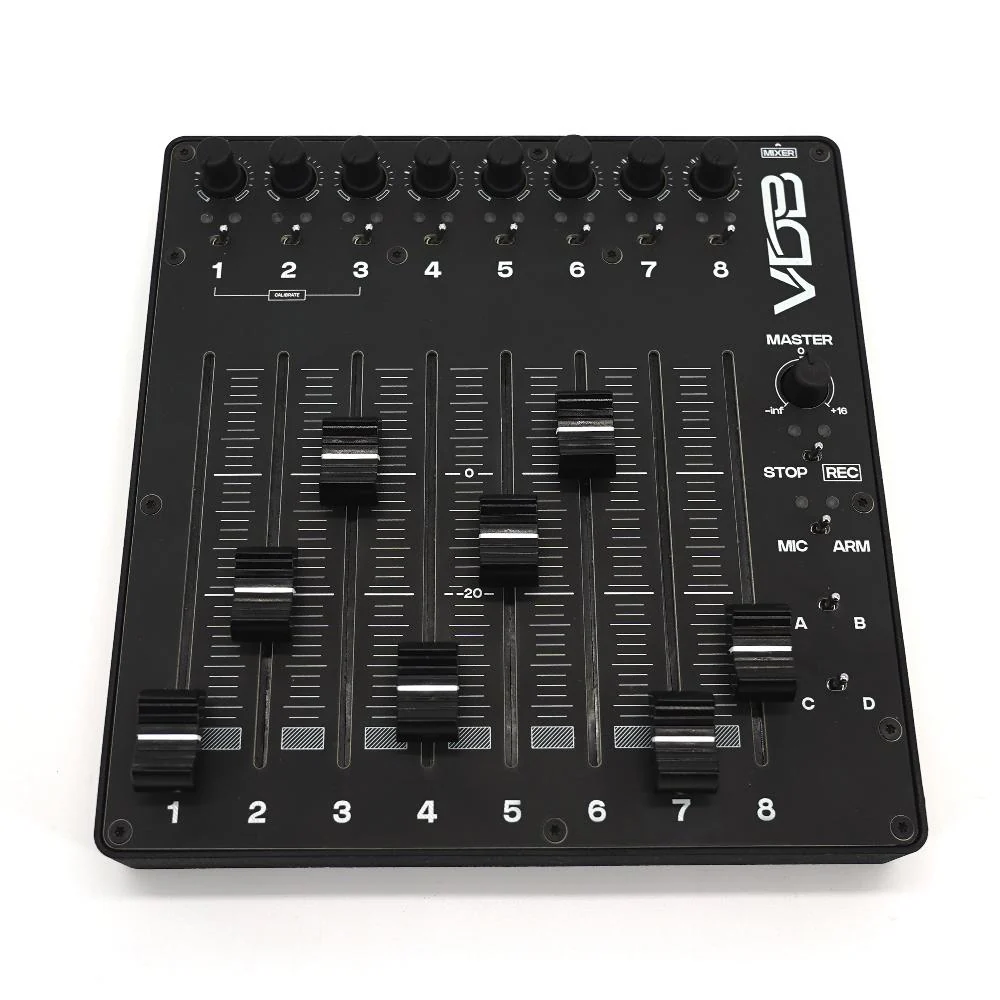

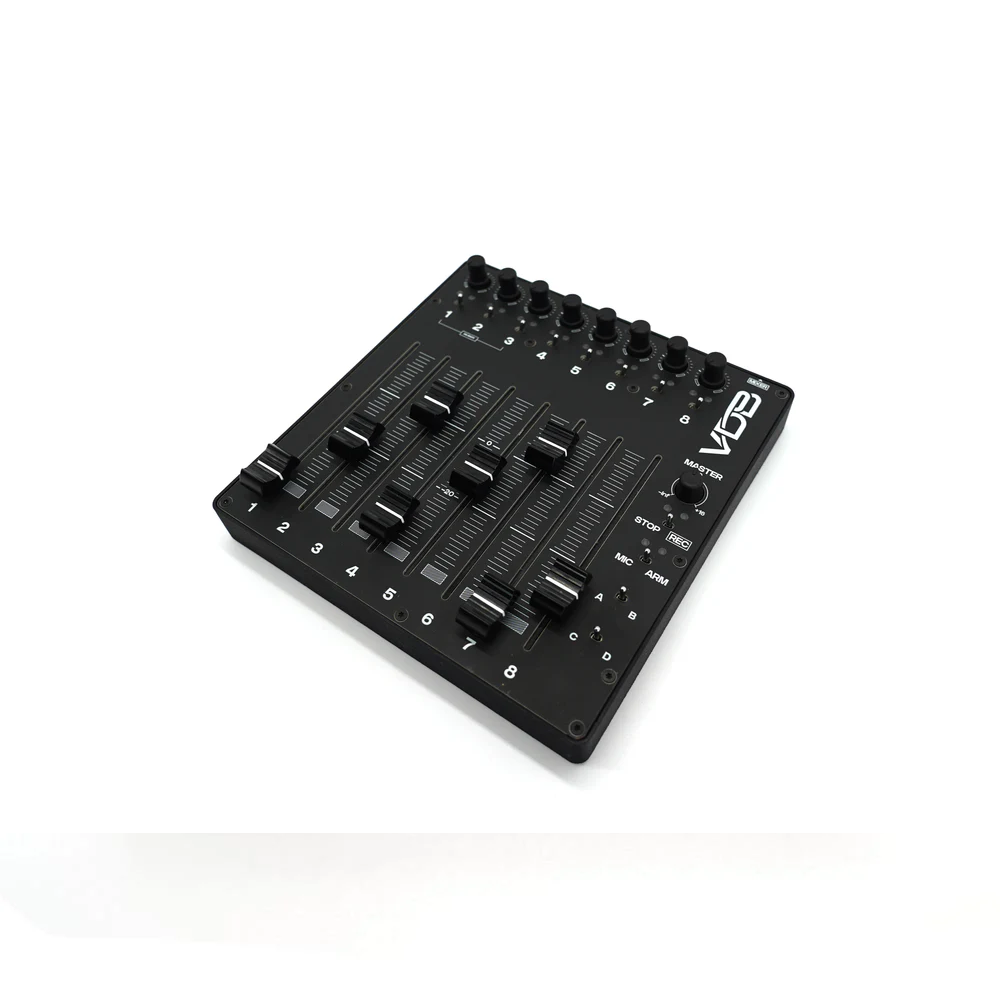

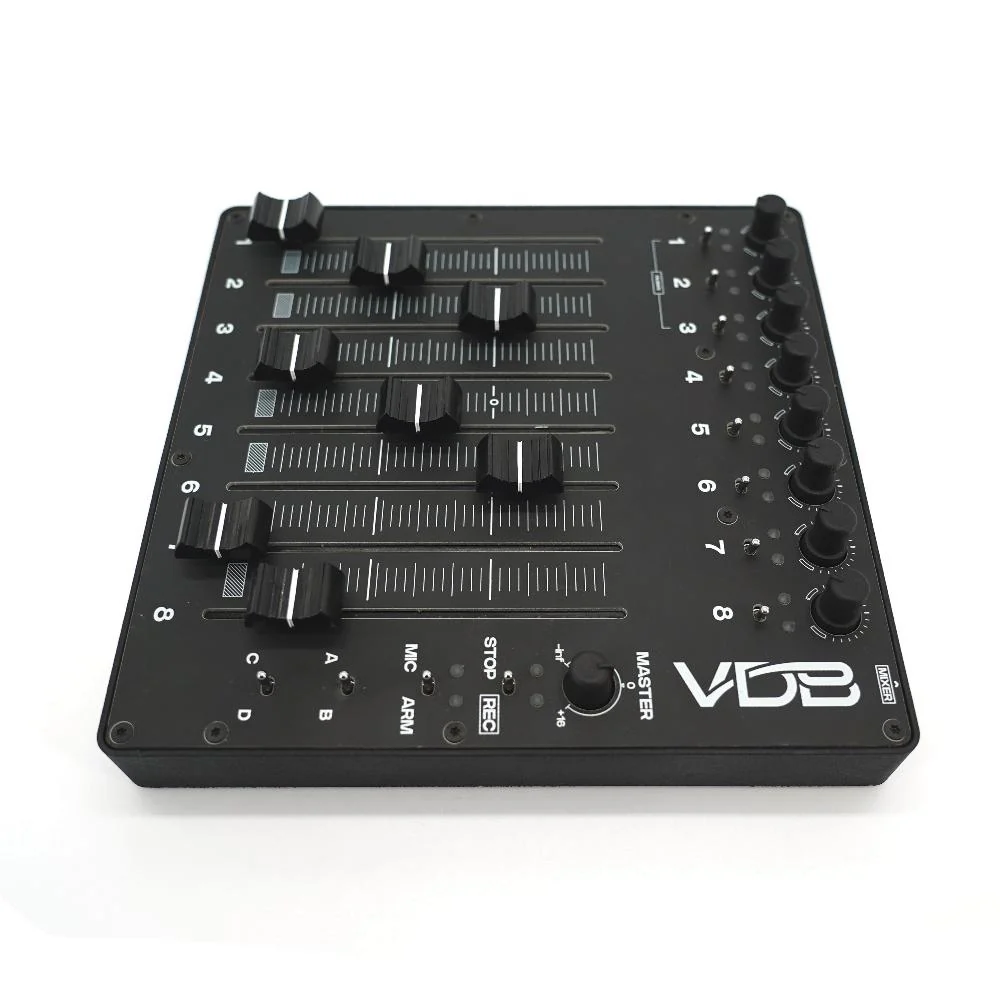

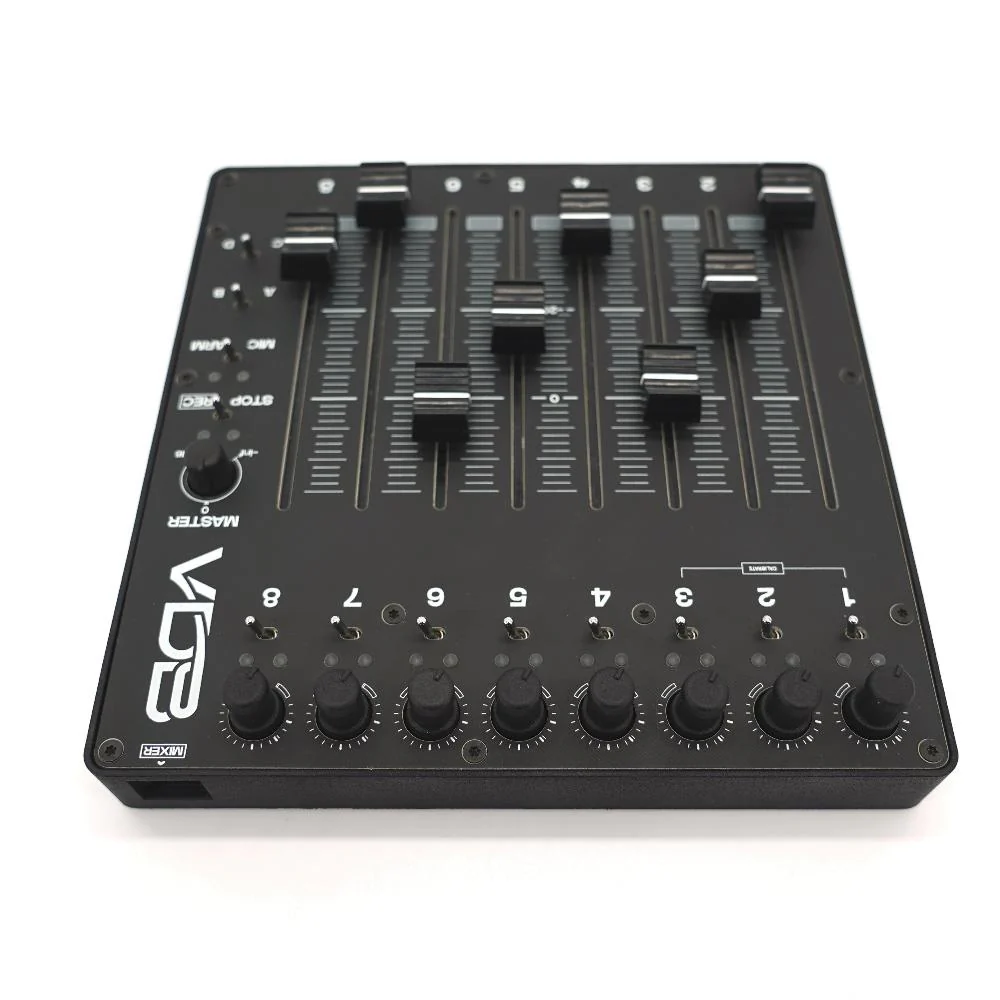

VdB - Finger Control Surface 8 - Firm

€1,186

Control your recording with fingertip precision - the Finger Control Surface 8 from VDB Audio is a robust and high-quality field recording control surface, designed to deliver full control of your equipment during demanding productions. It is specifically designed for use with Sound Devices Series 8 recorders (e.g. 833, 888, Scorpio), making it ideal for film, television, documentary and broadcast.

The benefits

With 8 channels of trim, fader and PFL, you get direct physical control over more tracks, allowing faster and more intuitive work in the field or studio.
High quality: aluminum chassis + PA-12 nylon to withstand mobile recording and harsh environments.
Selectable fader hardness (Soft or Firm): Allows you to customize the control feel according to personal work or environment - fast response or fine-tuned control.
Compact USB operation: Easily integrates with your Sound Devices recorders without an additional power supply.
Replaceable and repairable components: VDB has designed the control surface for longevity and serviceability - faders and potentiometers are replaceable.
Direct physical feedback: LED indications for PFL, arm/disarm, rec/slate allow the operator to have visual control even in noisy environments.

Technical specifications

Channels: 8 (trim + fader + PFL per channel)
Versions: 8 or 12 sliders, Soft or Firm (selectable)
Bus/additional controls: Master fader and five (or four depending on version) assignable buttons.
Protocol: Uses MIDI MCU protocol - compatible also for control in DAW (depending on setup)
Power supply: USB powered - fed from the recorder via USB cable. E.g. for FCS-12: max approx 140 mA at 5 V.
Connection: USB type B connector.
Mounting points: 3× ¼″ screw threads (not Kodak) for mounting on sound cart, rig, etc.
Dimensions: 276 × 200 × 43 mm (including faders)
Weight: Approx. 1.4 kg (for FCS-12)
Compatibility: Only for Sound Devices Series-8 and similar that support MIDI MCU control. Not compatible with MixPre series.
