PSC - RF Multi SR 4 Pack
€1,815
RF 4-Pack 470 - 700Mhz
- Fast Deliveries!
- Any Questions? We will help you!
- Multiple payment options!
- BrandPSC
Description
Article no.: 630-2020

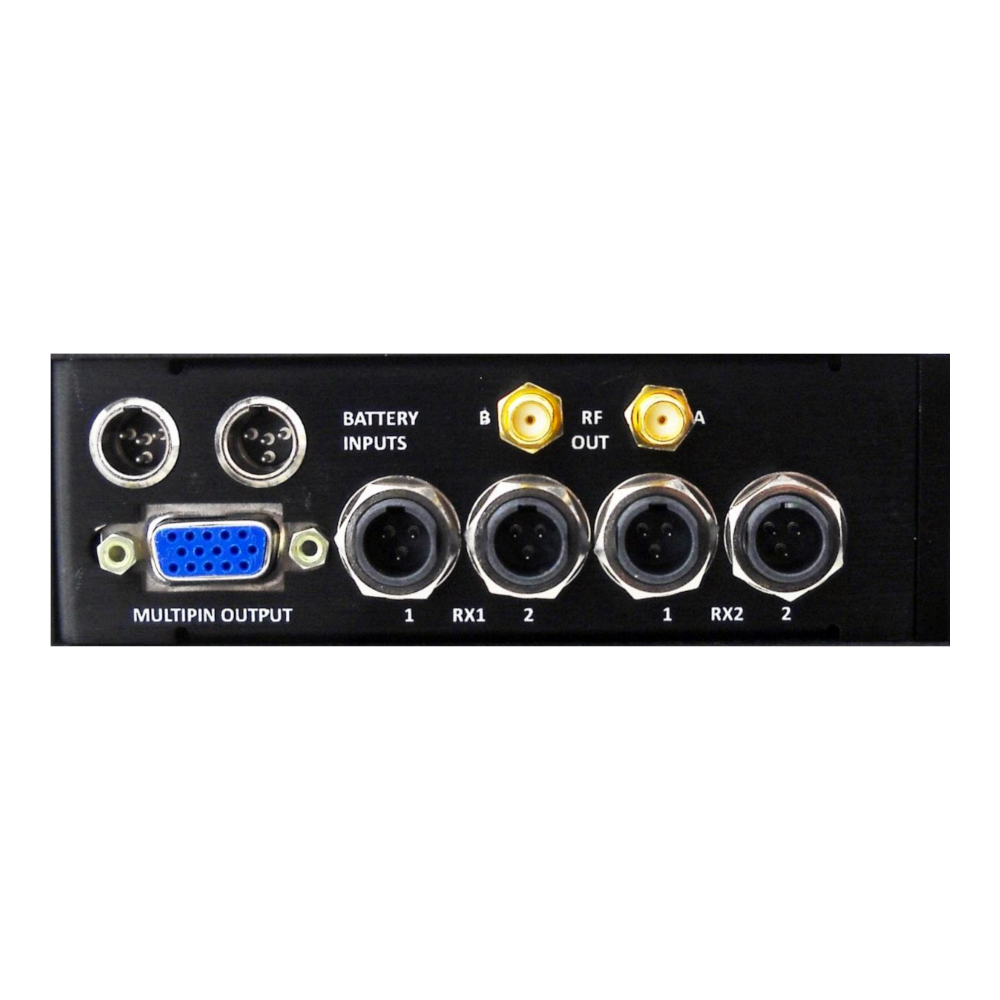

The RF 4 Pack is an antenna distribution for two dual receivers, ex Lectro SRC, for mounting in a mixing bag or on a cart. In addition, there are two extra SMA connectors on the side for connecting an additional receiver, an RF 4 Pack or an RF Multi SMA. The RF 4 Pack is powered via two TB4M (mini-XLR) connectors on the side and can handle 12-18Vdc, 170mA. The audio outputs are four TA3M (mini-XLR) on the side and one DB15HD multi-connector.
RF 4 Pack's RF distribution system has a built-in DC bias to supply power to† external antennas and RF amplifiers, RF Limiter, RF bandpass filter, low noise RF amplifier and an RF splitter. The antenna inputs are on BNC.†
†

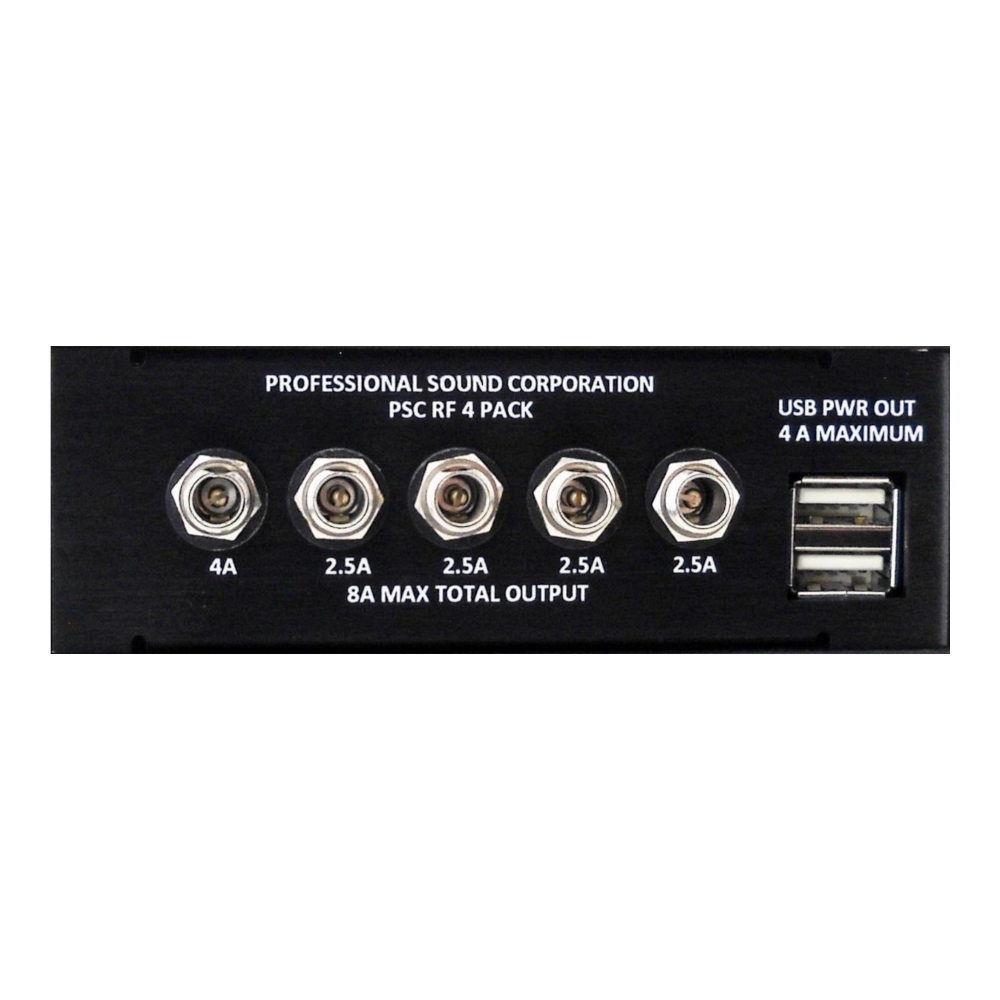

RF 4 Pack also includes a battery distribution system. Two double-soldered TB4M connectors (mini-XLR) act as input and in addition to distributing power to the receivers mounted in the RF 4 Pack there are also five outputs and two USB outputs with a total output of 8A. On the top there are four LEDs that indicate the charge level of the connected batteries.
RF 4 Pack's RF distribution system has a built-in DC bias to supply power to† external antennas and RF amplifiers, RF Limiter, RF bandpass filter, low noise RF amplifier and an RF splitter. The antenna inputs are on BNC.†
†
RF 4 Pack also includes a battery distribution system. Two double-soldered TB4M connectors (mini-XLR) act as input and in addition to distributing power to the receivers mounted in the RF 4 Pack there are also five outputs and two USB outputs with a total output of 8A. On the top there are four LEDs that indicate the charge level of the connected batteries.
- RF 4-Pack Single band 470-700 MHz
- Size: 23.5cm x 14cm x 4cm
