PSC - RF Multi SR 12 Pack

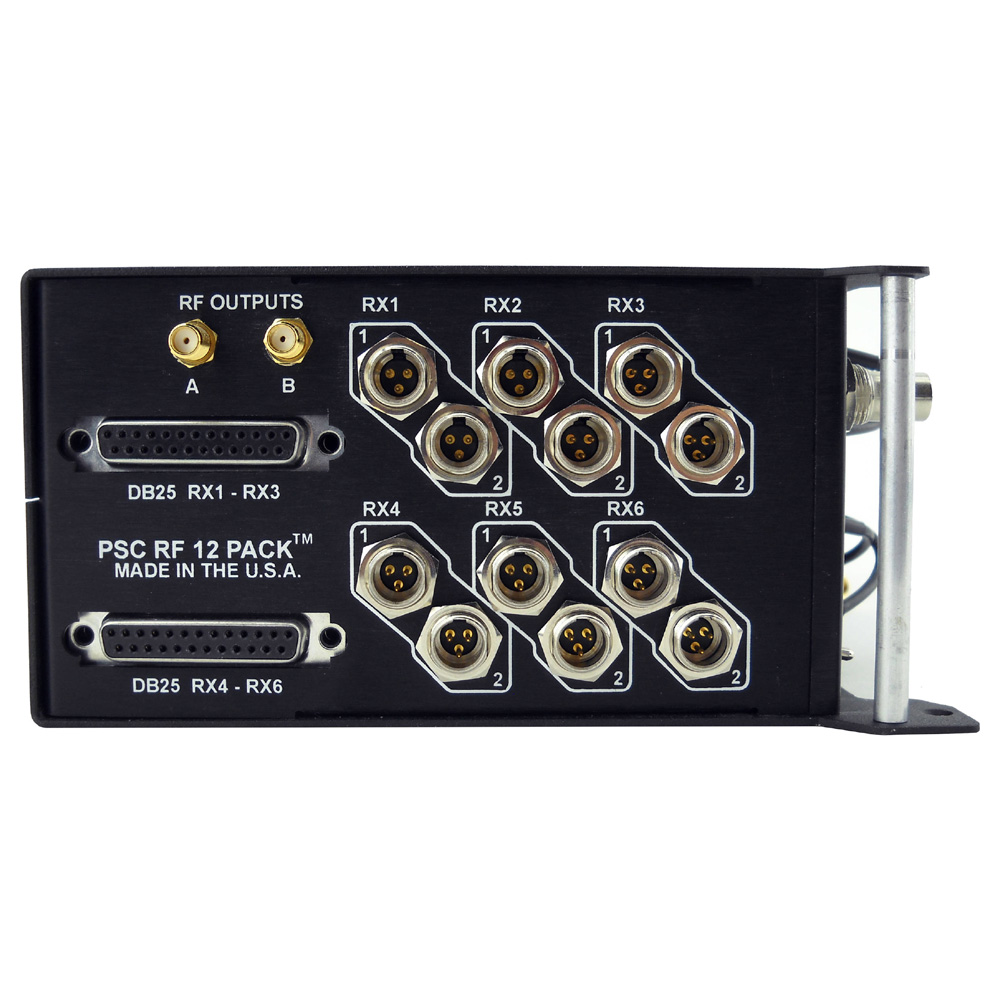

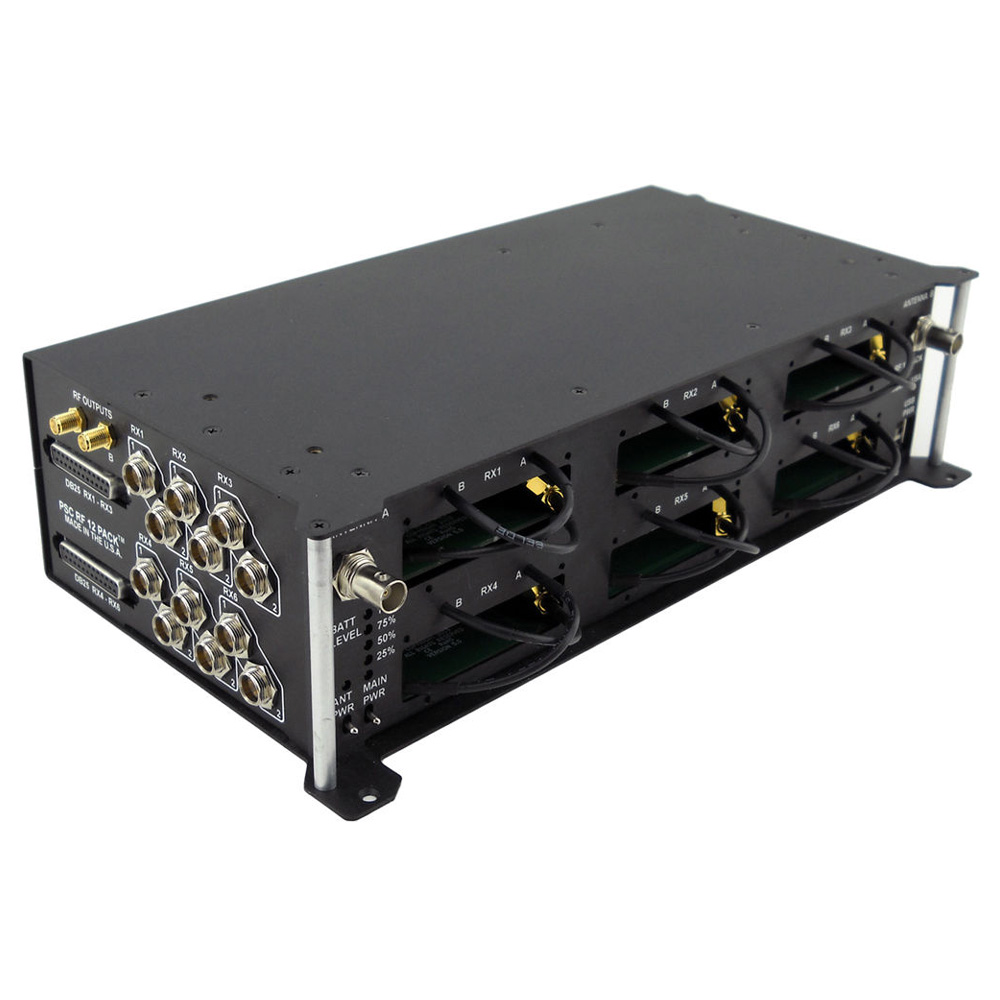

The RF 12 Pack is an antenna distribution for six dual receivers, ex Lectro SRC, for mounting on a cart. In addition, there are two extra SMA connectors on the side for connecting an additional receiver, an RF 12 Pack or an RF Multi SMA. The RF 12 Pack is powered either by a 98Wh or 99Wh Smart battery or via an XLR4M connector on the side and can handle 12-16Vdc. The audio outputs are 12 TA3M (mini-XLR) on the side and two DB25HD multi-connectors and can deliver both analog and digital signals, depending on what the receivers are set to.†

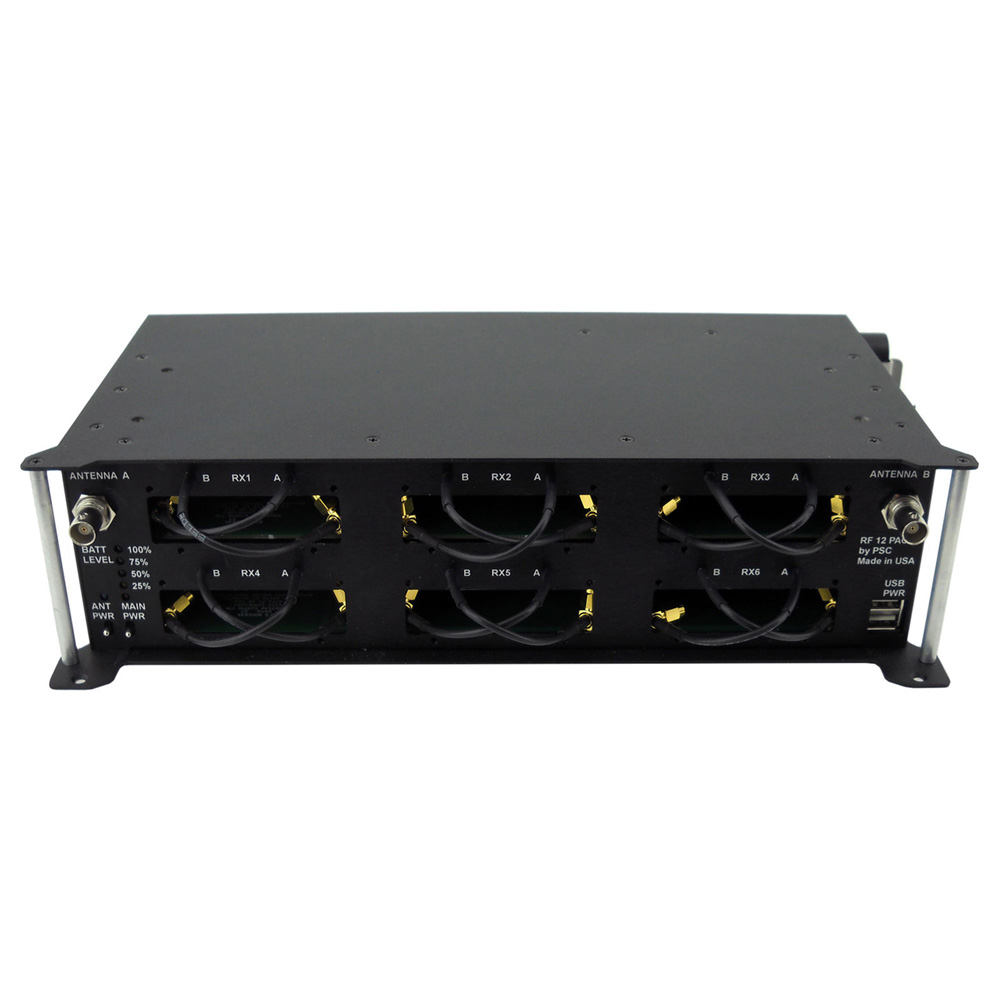

RF 12 Pack's RF distribution system has a built-in DC bias to supply power to† external antennas and RF amplifiers, RF Limiter, RF bandpass filter, low-noise RF amplifier and an RF splitter. The antenna inputs are on BNC. The RF 12 Pack handles frequencies from 470Mhz to 700Mhz.

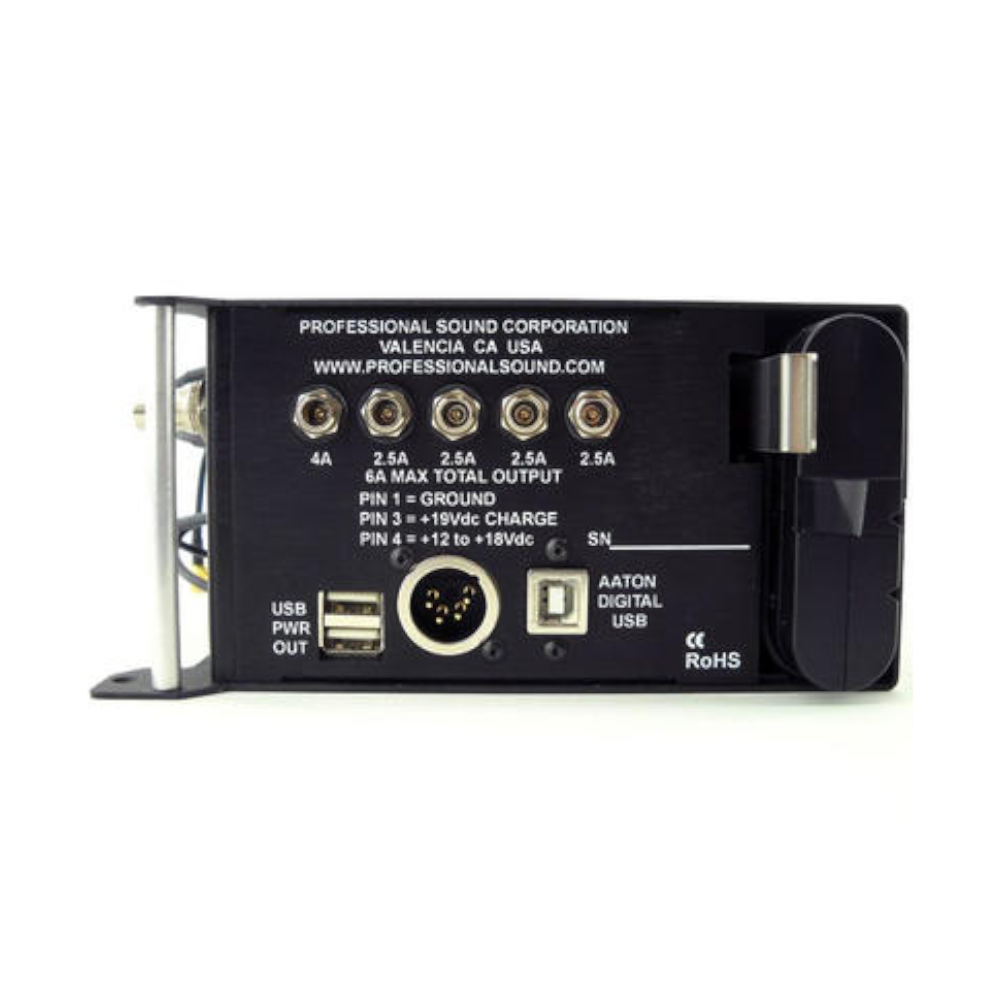

The RF 12 Pack also includes a battery distribution system. A battery slot for a Smart battery is on the side and an XLR4M. In addition to distributing power to the receivers mounted in the RF 12 Pack, there are also five outputs and two USB outputs with a total output of 6A. All outputs are protected with Polyfuse fuses. On the top there are four LEDs that indicate the charge level of the connected batteries.

• RF 12-Pack Single band 470-700 MHz
• Size: 33cm x 16.5cm 8.3cm
