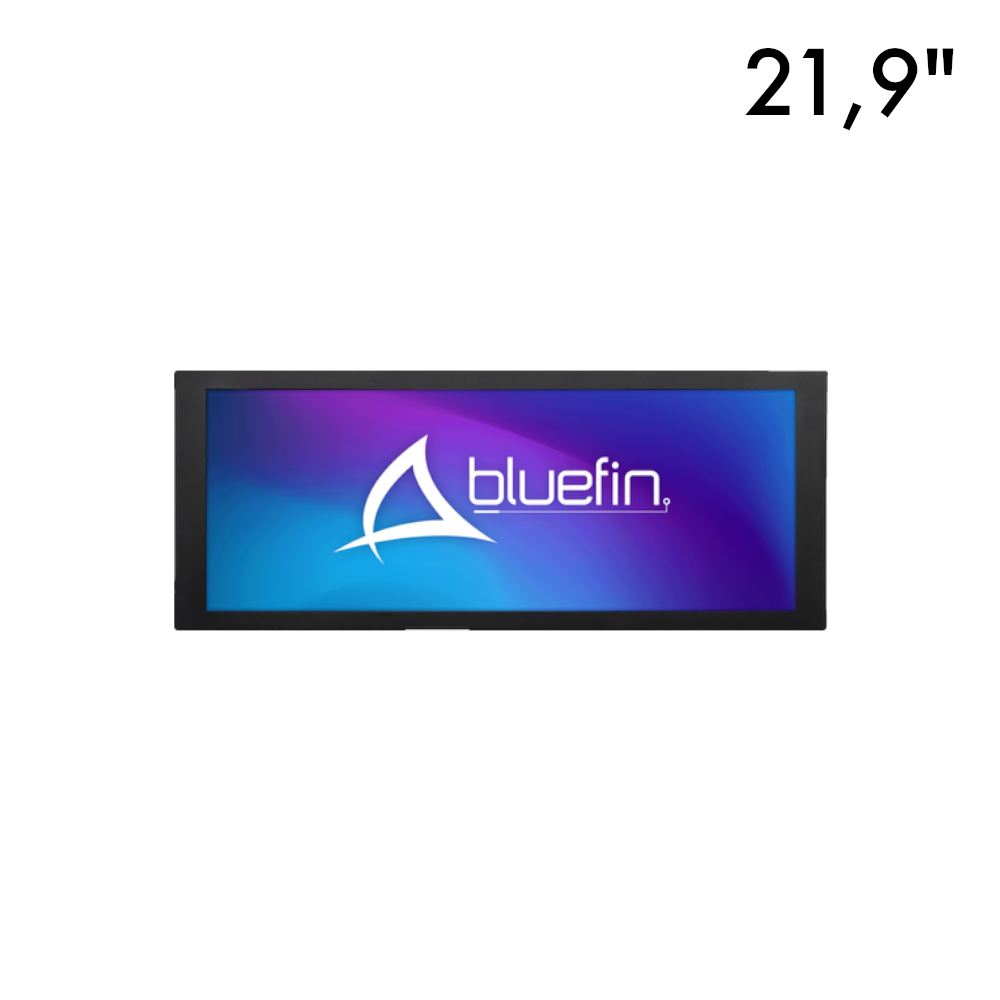

Bluefin - 21.9" Ultrawide, Finished, Brightsign Built In, Touch, PoE++, 1920x720
- Fast Deliveries!
- Any Questions? We will help you!
- Multiple payment options!
- BrandBLUEFIN
Description
Article no.: 186-1220
An ultra-wide screen with built-in media player from Brightsign and touch. Perfect for retail or as an information display in a museum or similar.
Specifications
DISPLAY
21.9'' LCD Screen
Resolution: 1920x720
Max Brightness: 500 nits
Viewing Angle: 89/89/89/89
Contrast: 1000CR
Touch: Capacitive Touch
SYSTEM
Included HDMI™ connectivity
mini-USB touch screen override
Optional Embedded Players:
INPUT / OUTPUT
HDMI™-In
mini-USB touch screen control
1x Micro-SD
1x USB 2.0
Phoenix GPIO (4-pin Bi-Directional)
3.5mm RS232 Serial
RJ45 Ethernet
3.5mm Analog/Digital Audio Out
Optional Wi-Fi
Phoenix GPIO only supported with BrightSign. Only HDMI™ and touch control ports available when no player is installed.
HOUSING / MOUNTING
Finished Non-Touch
Size: 21.9 x 8.9 x 2.1''
Weight: 6kg
Mounting: VESA 75x75mm, M4x6mm
Finished Touch Screen
Size: 22.5 x 9.8 x 2.2''
Weight: 6.8kg
Mounting: VESA 75x75mm, M4x6mm
POWER
Adapter Style: Micro Molex
Adapter Output: 12V 3A
USA Adapter SKU: 20-0150-0641
International Adapter SKU: 20-0150-0653
Power over Ethernet (PoE+) 802.3at
Files and media
 | Data Sheet Brightsign HS145 |
| Mechanical Drawings |
