Nexmosphere - XT-EF650 AirButton

Nexmosphere's XT EF-Series is a series of sensors in different sizes that can detect a touchless input from the user.

Nexmosphere's AirButton detects when the hand either approaches the sensor or leaves its active field and sends both events to your media player. The AirGesture buttons detect whether the hand is swiping both right, left and up or down in relation to the button. All of these can be used to trigger events in your installation.

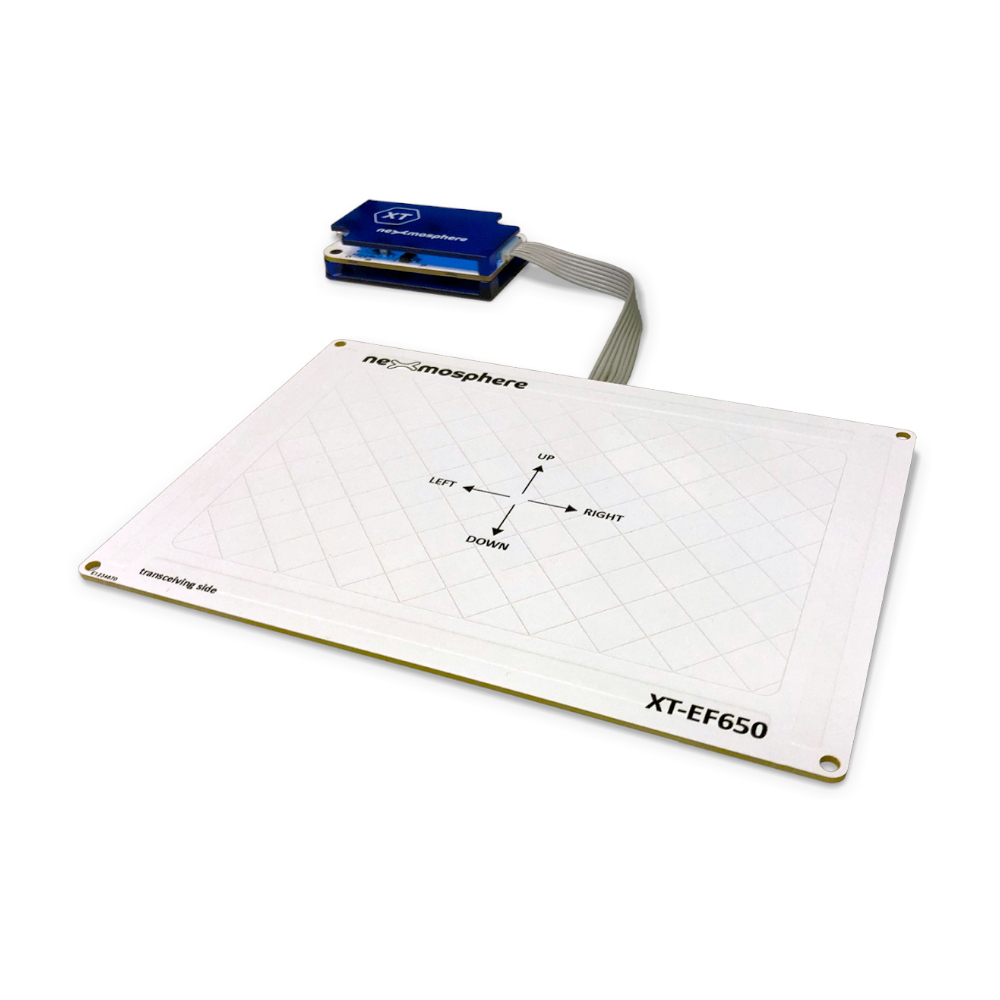

XT-EF650 features AirButton, AirGesture and AirWheel detection and has a size of 140 x 90mm.

X-Talk< /strong>
Connects a wide range of sensors, buttons, LEDs or any other type of Nexmosphere element to create a unique experience. Your creativity simply becomes the limit of what can be done by connecting different sensors depending on the application. As X-talk is auto-configuring, no programming is needed to connect the sensors. X-talkinterfaces is also compatible with standard I/O devices such as buttons and the like.

Functions

• AirButton detection for touchless user input
• AirGesture detection for touchless navigation
• AirWheel detection for touchless parameter control
• Adjustable sensitivity

Advantages

• Very thin form factor for easy integration
• Capacitive sensing technology allows for placement behind or below any non-metal surface Integrated driver on electrode panel
• Auto-calibration and auto-start for highly reliable applications (24/ 7)
• Status LED indicating trigger detection
