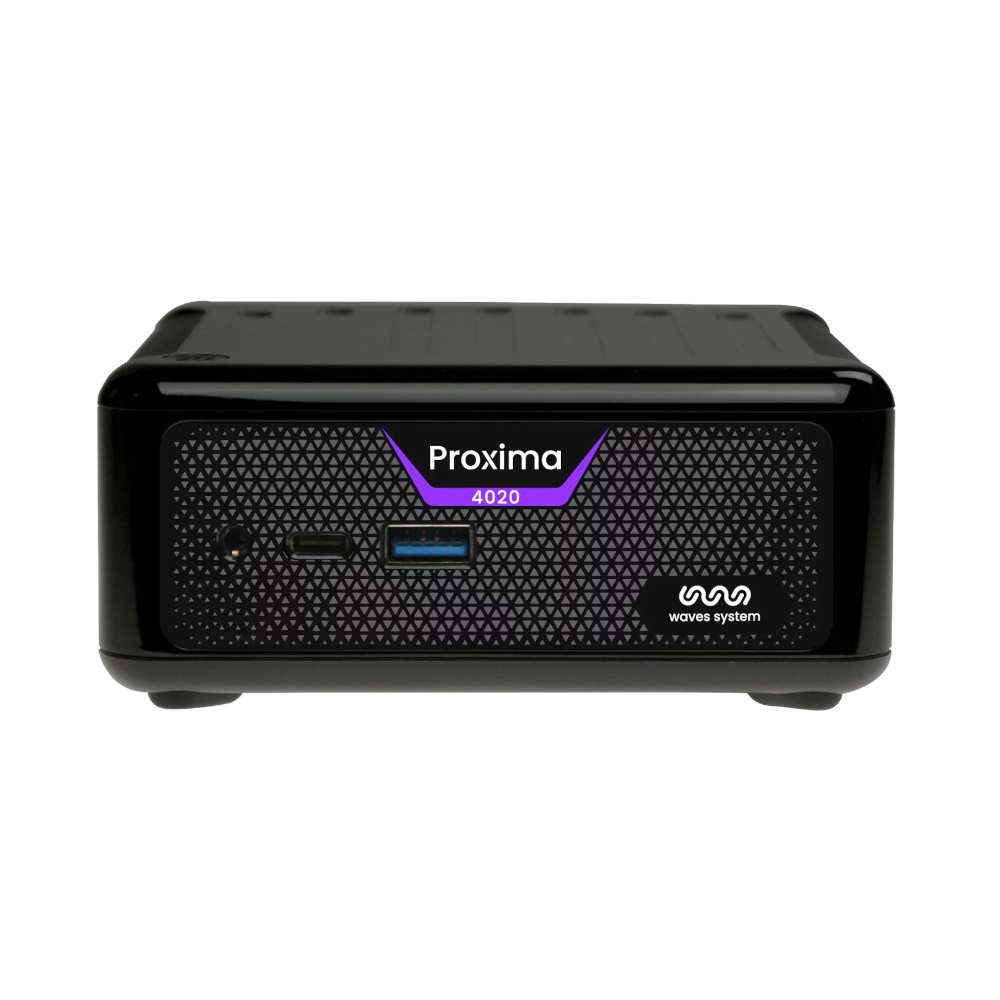

Waves System - Proxima 4020

Efficient

The Proxima 4020 media server features the most intuitive composer on the market. Connect to composer from your remote desktop and easily create a video projection with two video projectors. The soft-edge and sync frame offer exceptional rendering. The composer also includes a 15×15 warping grid to conform the video to a 3D structure. The NDI input allows the import of streams from other machines such as generative and interactive video engines. Perfect loops and fade transitions ensure broadcast continuity.

Integrated with other systems

The OSC API allows you to wake or put to sleep as well as launch pre-recorded sequences.

Compact

The compact format of the Proxima 4020 media server allows it to be installed as close as possible to video projectors on the ceiling, for example. You save cables and money.

Reliable and easy to setup

The Proxima 4020 media server is designed for 24/7 operation. It is robust to power outages. The Linux OS is mastered, updates are at the customer’s initiative. The product is guaranteed for 3 years.

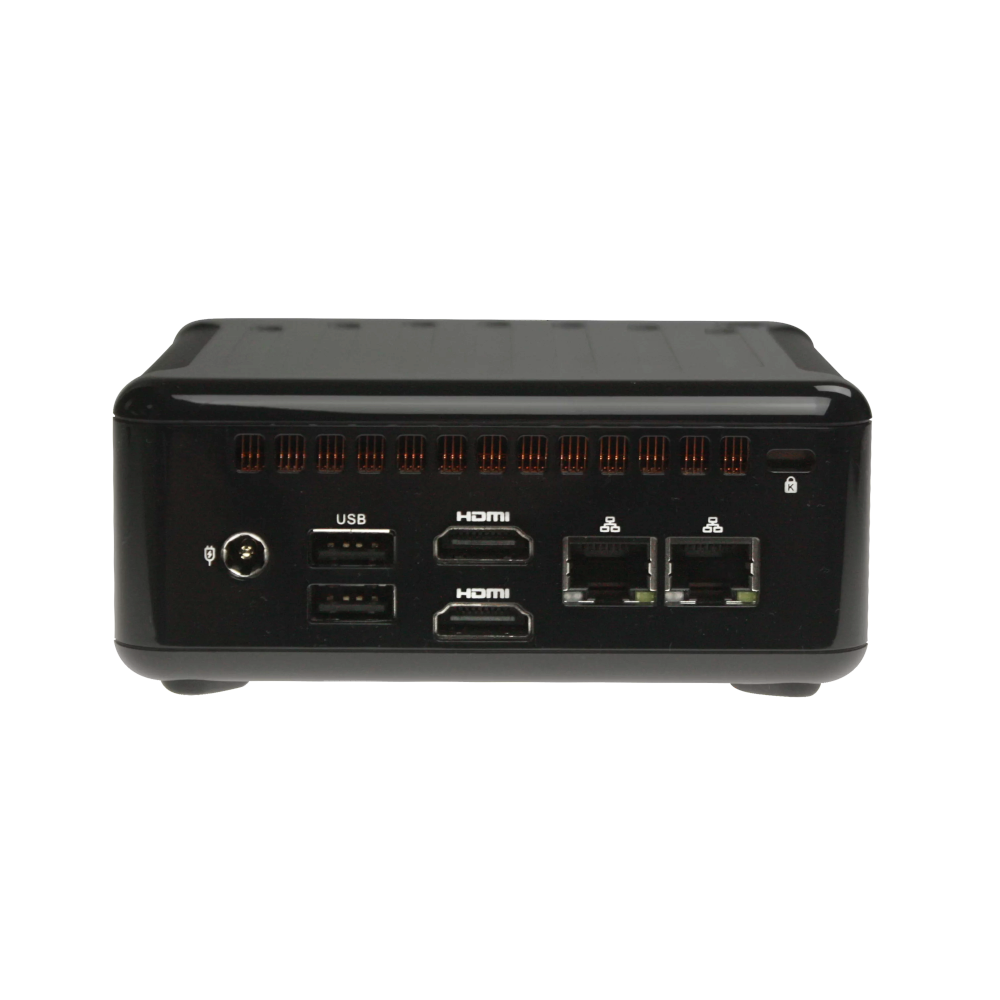

Interfacing and connectivity

• 2  HDMI 2.1 video outputs, contact type-A  (up to 2xWUXGA@60Hz)
• 4 USB host:
  • 1 USB Host 4.0 Super Speed (10 Gbps), type-C receptacle
  • 1 USB Host 3.2 Gen 2 Super Speed (10 Gbps), type-A receptacle
  • 2 USB Host 2.0 High Speed (480 Mbps), type-A receptacle
• 2.5 Gbps Ethernet on RJ45 connector with status LEDs (Network, Activity)
• 1 Gbps Ethernet on RJ45 connector with status LEDs (Network, Activity)
• Stereo audio output on a standard 3.5 mm (TRS) jack
• DC Power supply 19V/6.32A – Plug Ø 2.1 mm / 5.5mm

Compatible video formats

• Ultra HD 4K (3840 × 2160), 24/25/30/50/60 Hz
• 1080p (1920 × 1080), 24/50/60 Hz
• 1080i (1920 × 1080), 50/60 Hz
• 720p (1280 × 720), 50/60 Hz
• 576p et 576i (720 × 576), 50 Hz
• 480p et 480i (720 × 480), 60 Hz
• Main VESA Resolutions in Progressive Scan:
  • 640 × 480, 60 Hz
  • 800 × 480, 60 Hz
  • 852 × 480, 60 Hz
  • 854 × 480, 60 Hz
  • 800 × 600, 60 Hz
  • 1024 × 600, 60 Hz
  • 1024 × 768, 60 Hz
  • 1152 × 864, 75 Hz
  • 1280 × 960, 60 Hz
  • 1280 × 768, 60 Hz
  • 1280 × 800, 60 Hz
  • 1280 × 1024, 60 Hz
  • 1360 × 768, 60 Hz
  • 1366 × 768, 60 Hz
  • 1440 × 900, 60 Hz
  • 1600 × 900, 60 Hz
  • 1600 × 1200, 60 Hz
  • 1680 × 1050, 60 Hz
  • 1920 × 1200, 60 Hz
  • 1400 × 1050, 60 Hz
  • 2160 × 1200, 90 Hz
  • 2560 × 1600, 60 Hz
• Dynamic: HDR10

Supported container formats:

• Video :
  • .mp4 (MPEG-4)
  • .mkv (Matroska)
  • .mov (QuickTime)
• Image :
  • .jpg or .jpeg (Joint Photographic Experts Group) (ISO/IEC-10918)
  • .png (Portable Network Graphics)
  • .bmp (Bitmap)
• Audio :
  • .wav (WAV)
  • .mp3 (MPEG-Layer 3)
  • .ogg, .opus (OGG)
  • .m4a (MPEG-4 Audio)
  • .mka (Matroska)

Supported codecs:

• Video :
  • H.265 HEVC MP-10@L5.1 jusqu’à 4K×2K@60fps
  • VP9 Profile-2 jusqu’à 4K×2K@60fps
  • H.264 AVC HP@L5.1 jusqu’à 1080p@60fps et 4K×2K@30fps
• Image :
  • JPEG (ISO/IEC-10918)
  • PNG
  • BMP
• Audio :
  • MP3 : MPEG-1/2 Audio Layer III, mono / stéréo, jusqu’à 48kHz, CBR (Constant Bit Rate) ou VBR (Variable Bit Rate), avec ou sans métadonnées ID3v1/2
  • AAC-LC : Advanced Audio Coding, jusqu’à 8 canaux, jusqu’à 96kHz
  • HE-AAC-LC : High-Efficiency Advanced Audio Coding, mono / stéréo, jusqu’à 96kHz

Storage

• Hard drive: 500 Go SSD NVME M.2
• RAM: 16 Go-DIMM DDR5 5600 MHZ

Network

• Embedded web server:
  • Remote administration :
    • Configuration
    • Control
  • Control the media server with API OSC
• Embedded NTP client for clock synch
• IPv4 and IPv6
• IPv4 : static or DHCP adress
• Embedded mDNS identification service (Zeroconf)

Built-in clock

• Timekeeping when the player is not powered: up to 2 months

Audio amplifiers

• Headphone output:
  • Maximum output power:
    • 2 × 15 mW for 32 Ω
    • 2 × 30 mW for 16 Ω
  • THD+N:
    • 0.014 % for 2 × 5 mW, 32 Ω, 1 kHz
    • 0.016 % for 2 × 10 mW, 32 Ω, 1 kHz
    • 0.022 % for 2 × 10 mW, 16 Ω, 1 kHz
    • 0.028 % for 2 × 20 mW, 16 Ω, 1 kHz

Power supply

• Power supply input:
  • Nominal voltage: 12 V DC – 3,45 A
• Supplied mains adapter input:
  • Voltage: from 100 V to 240 V
  • Frequency: from 50 Hz to 60 Hz

Current Consumption (12 V supplied)

• Typical consumption in playback with its internal memory: 1,5 A
• Recommended power supply for full use of the device – output current: 3.45 A

Thermal

• Operating ambient temperature: from 0 to +45 °C
• Storage temperature: from -20 to +60 °C

Dimensions

• Width: 117,5 mm
• Heigth: 47,85 mm
• Depth: 110 mm
