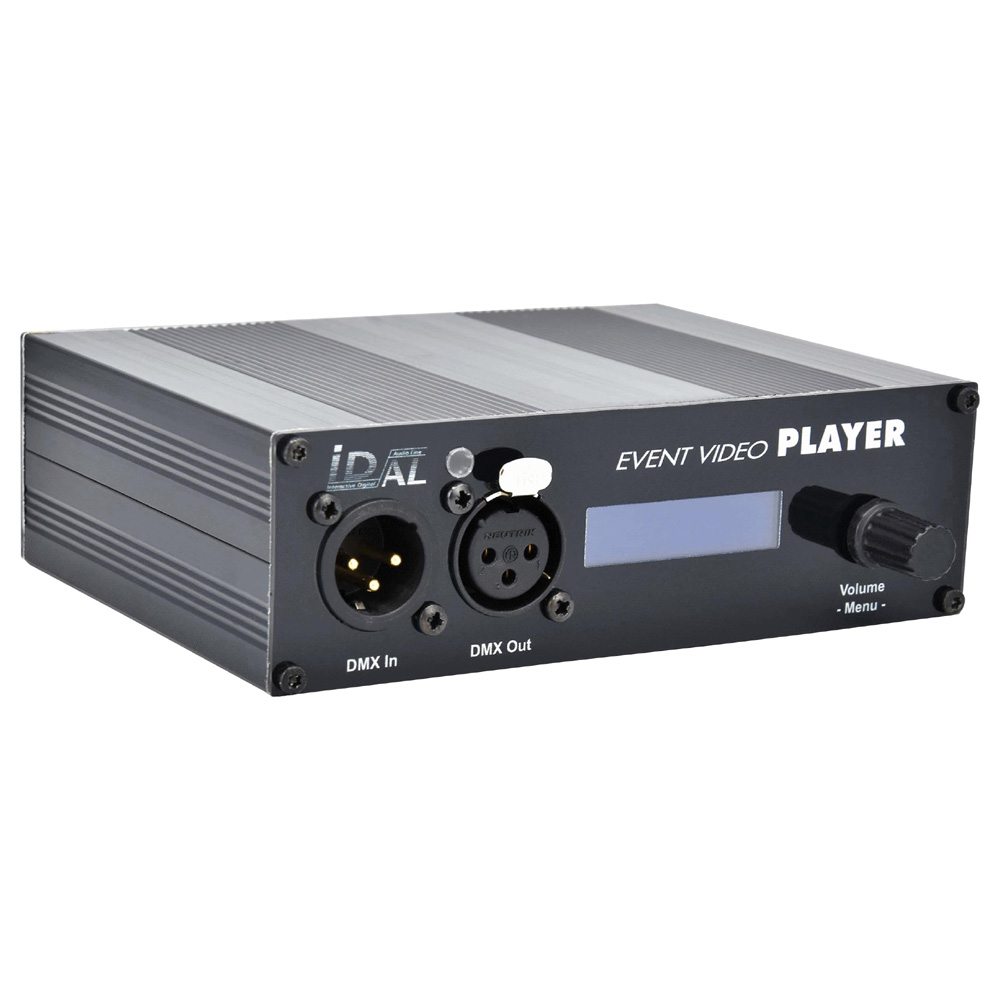

Waves - Event Video Player EVP380

EVP380, 4K/HD digital image and sound player, interactive with DMX512, Art-Net, show control and scheduling. The EVP380 plays video, images and sounds from a USB stick or memory card. The material can be played in a continuous loop, started with RS232 or contact connections. Contact closures are also available as an output for control. Resolution up to 4K (see brochure for details) Outputs for picture on HDMI. Outputs for eight channels of sound, line level and 2x15W. 3 can be mounted on a rack shelf (accessory). Power supply included.
Show control software is available to control DMX, MOS-fet outputs and RS-232 on timeline with image/sound. Scheduler software for programming time/date events.

• Video out on HDMI up to 4K resolution
• Audio Stereo out via RCA, 8 channels via HDMI
• Speaker output 2 x 15W/ 4ohm
• 8 pcs Optoisolated contact closures in (can be combined)
• 8 pcs MOS fet outputs (500mA/20V)
• RS-232
• DMX512 In / Out (one universe)
• Art-Net In / Out (64 universes)
• Size: W140 x H44 x D136 mm</li >
