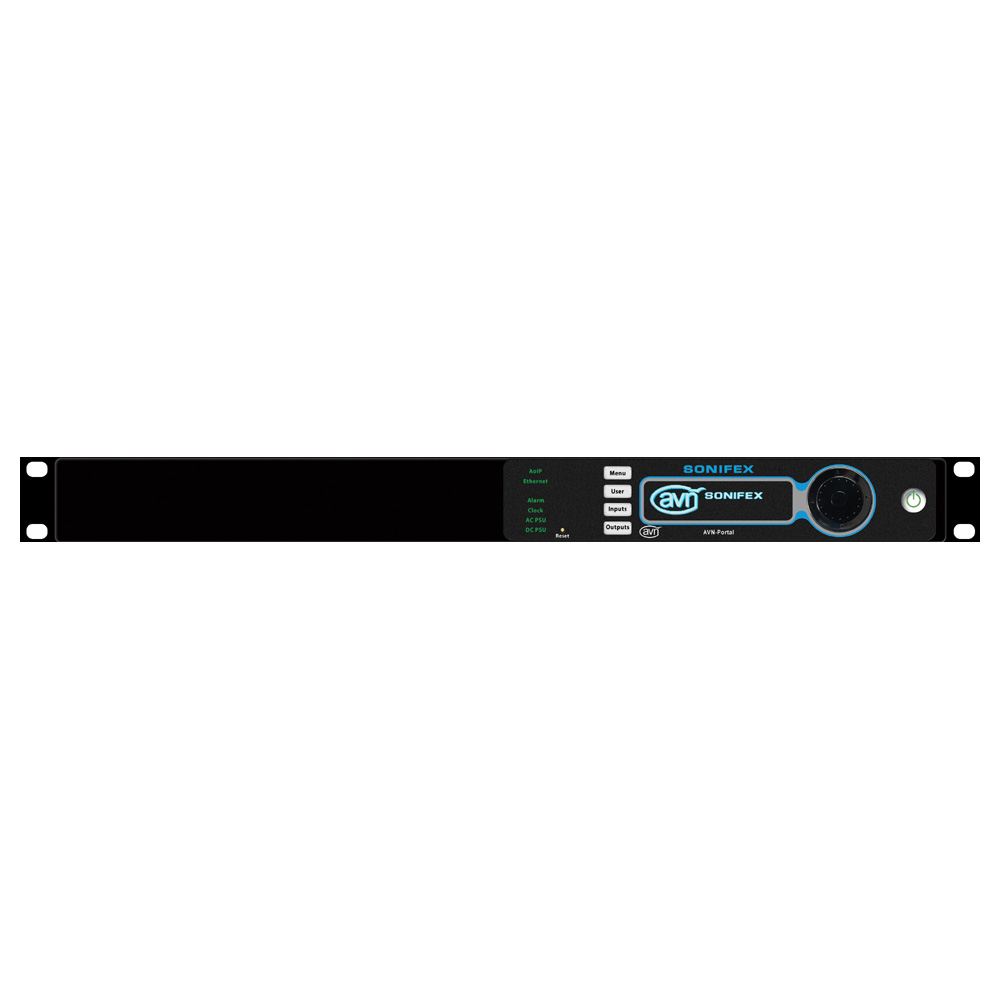

Sonifex - AVN-PD8

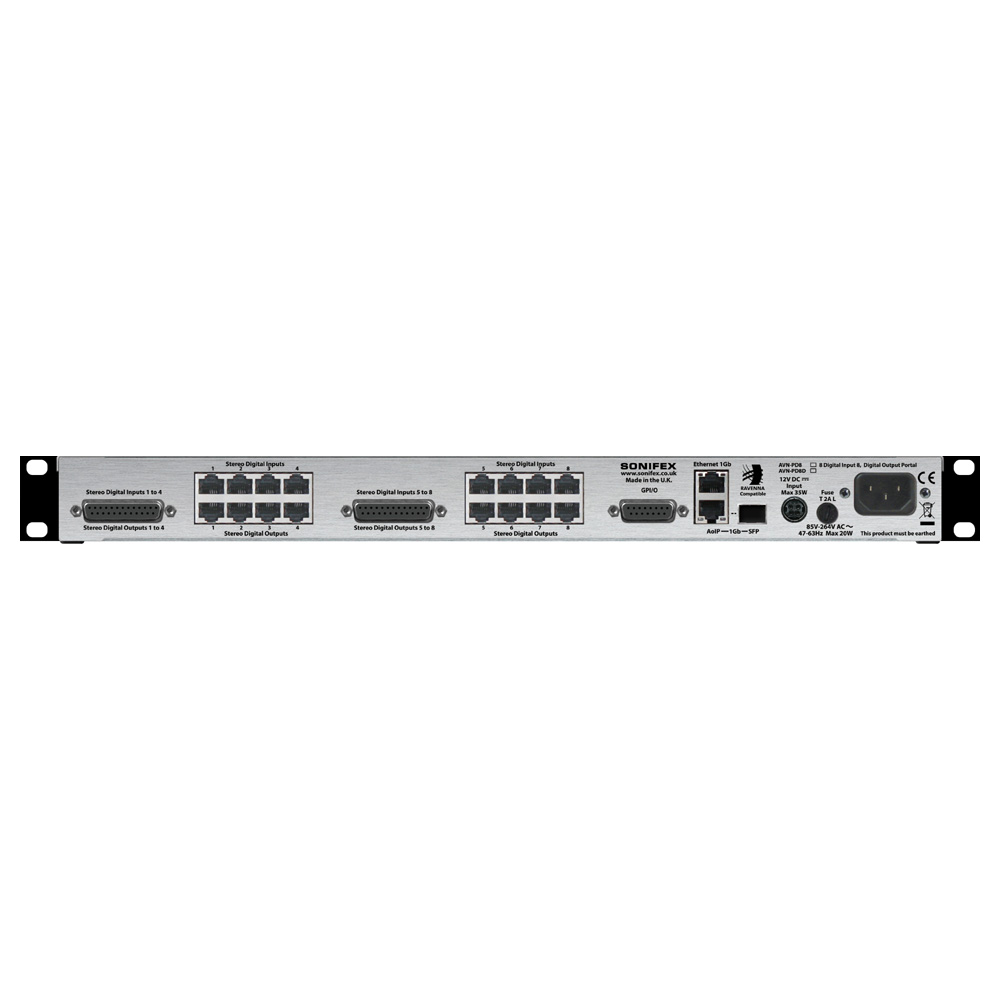

AVN-PD8 is a mix/routing matrix with AES67 in/out and 8 AES3 stereo in/out. Compatible with AES67 and RAVENNA AoIP streams. Up to 16 channels from up to 8 streams can be received in the matrix along with the physical inputs. They can be freely mixed and routed to the physical outputs as well as to up to 8 AoIP streams with 8 channels each, totaling 64 channels. In the matrix, the level of each input, output and crosspoint can be adjusted individually, the inputs and outputs also have selectable high-pass and low-pass filters. A built-in web server allows programming and monitoring. Powered by 230VAC and/or 12VDC and thus provides redundancy. The connection of the AES3 inputs/outputs is done on 25p DSUB connectors or on RJ45 connectors with StudioHub pinout.
