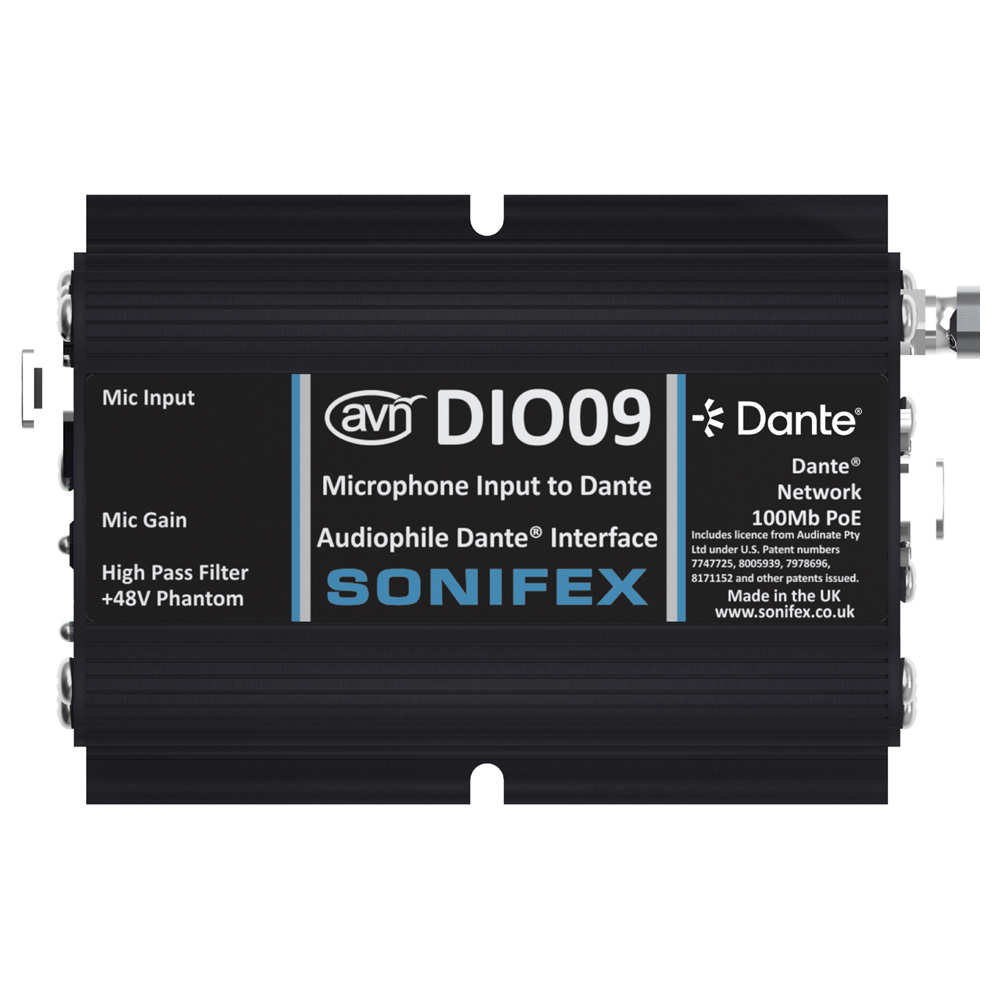

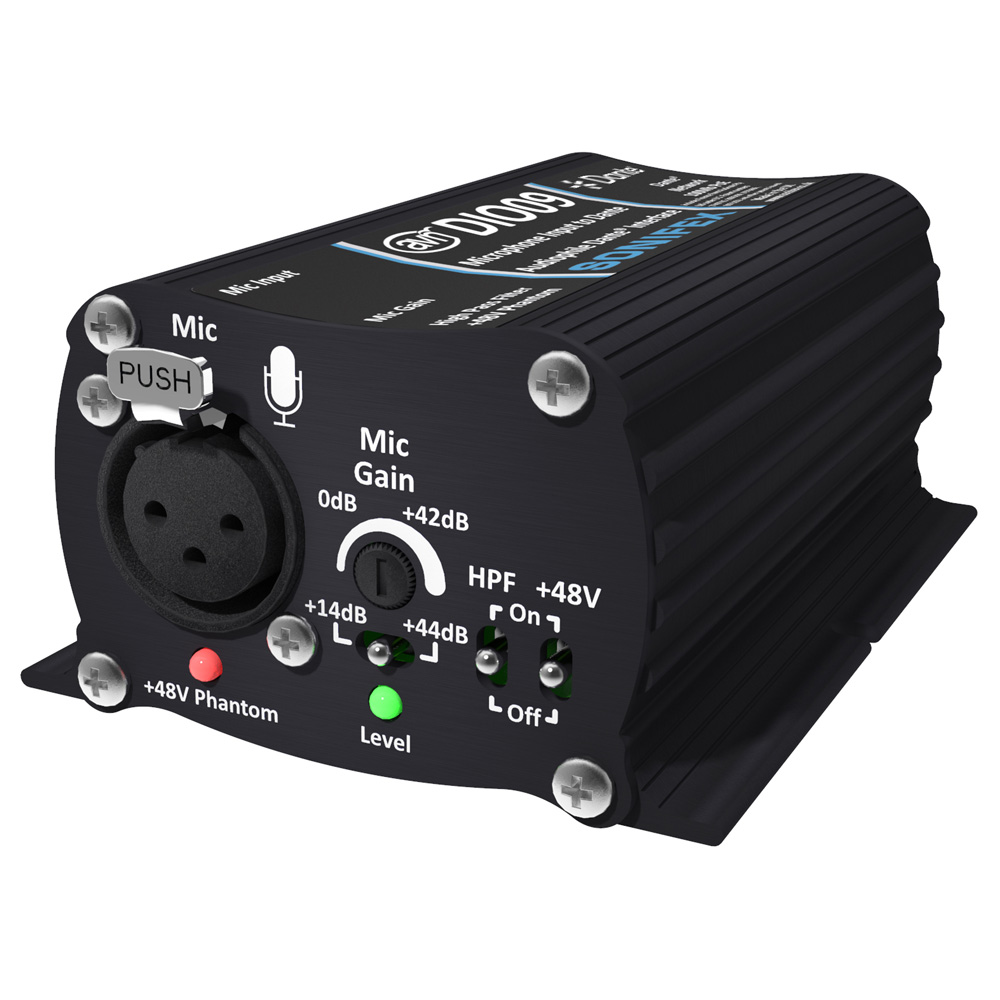

AVN-DIO09 is an AoIP interface from 1 balanced XLR microphone input to Dante. High quality A/D converter with 120 dB dynamic range. Power supply via PoE (Power over Ethernet).

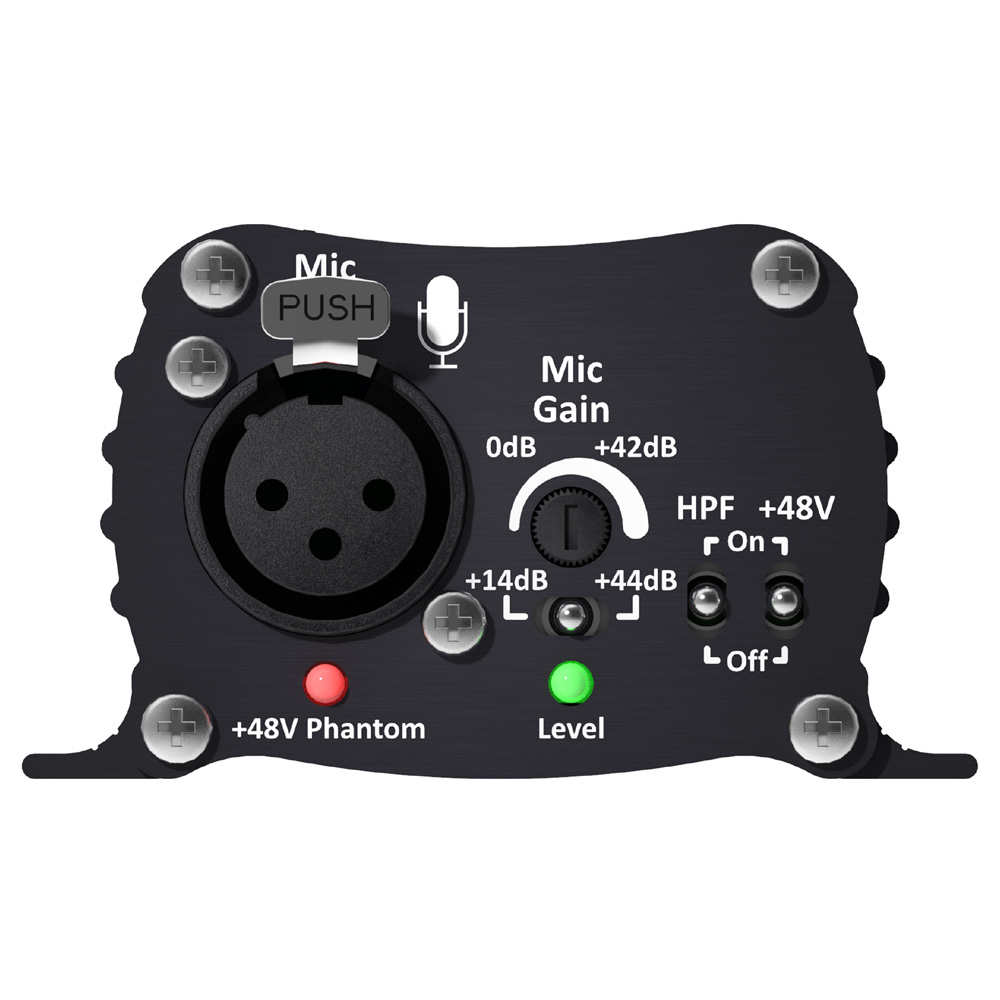

- 1 balanced microphone input on XLR3F
- 48V phantom power
- Gain 20-86 dB (20/50 switch + 0-36 pot)
- HP filter 125Hz 6dB/oct.

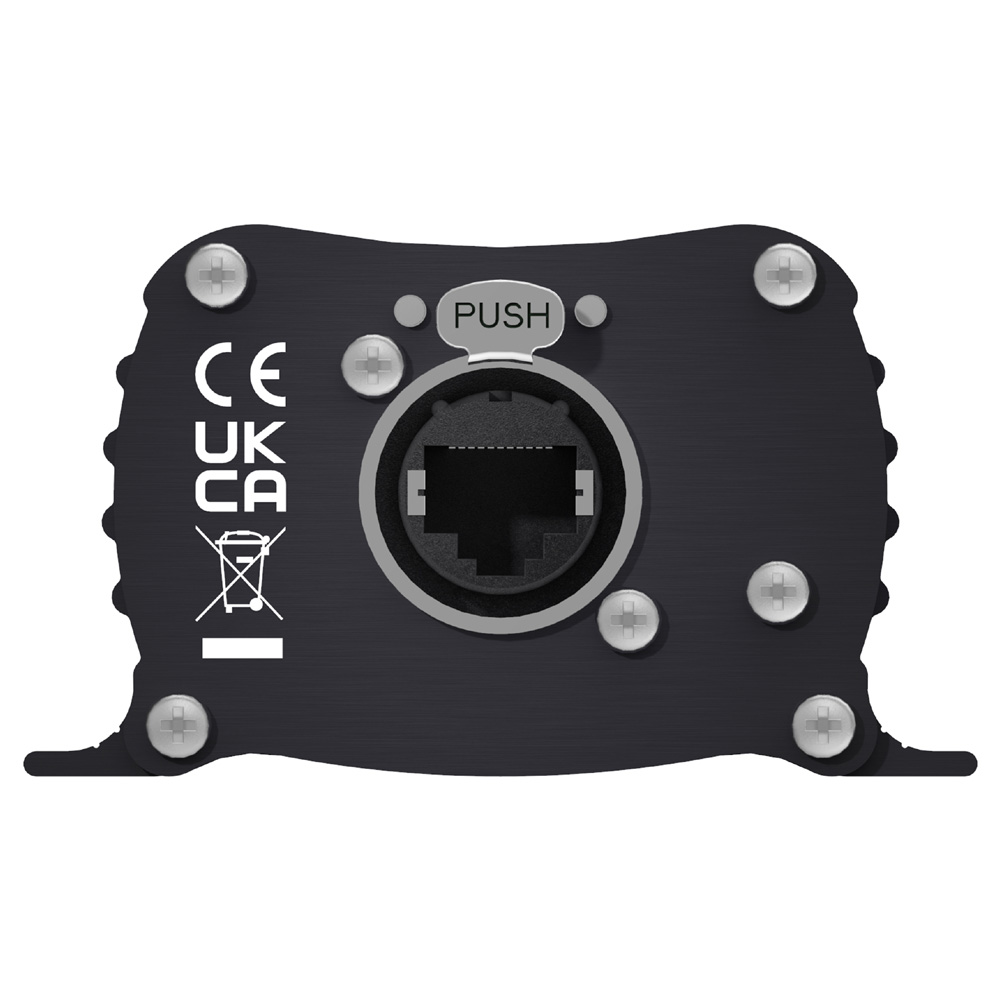

- Neutrik EtherCon® Ethernet connection
- Fully Dante compatible
- AES67 compatible
- Dante Domain manager compatible
- Ultra high quality A/D converter
- Power supply via PoE (Power over Ethernet)
