Sonifex - RB-DDA22

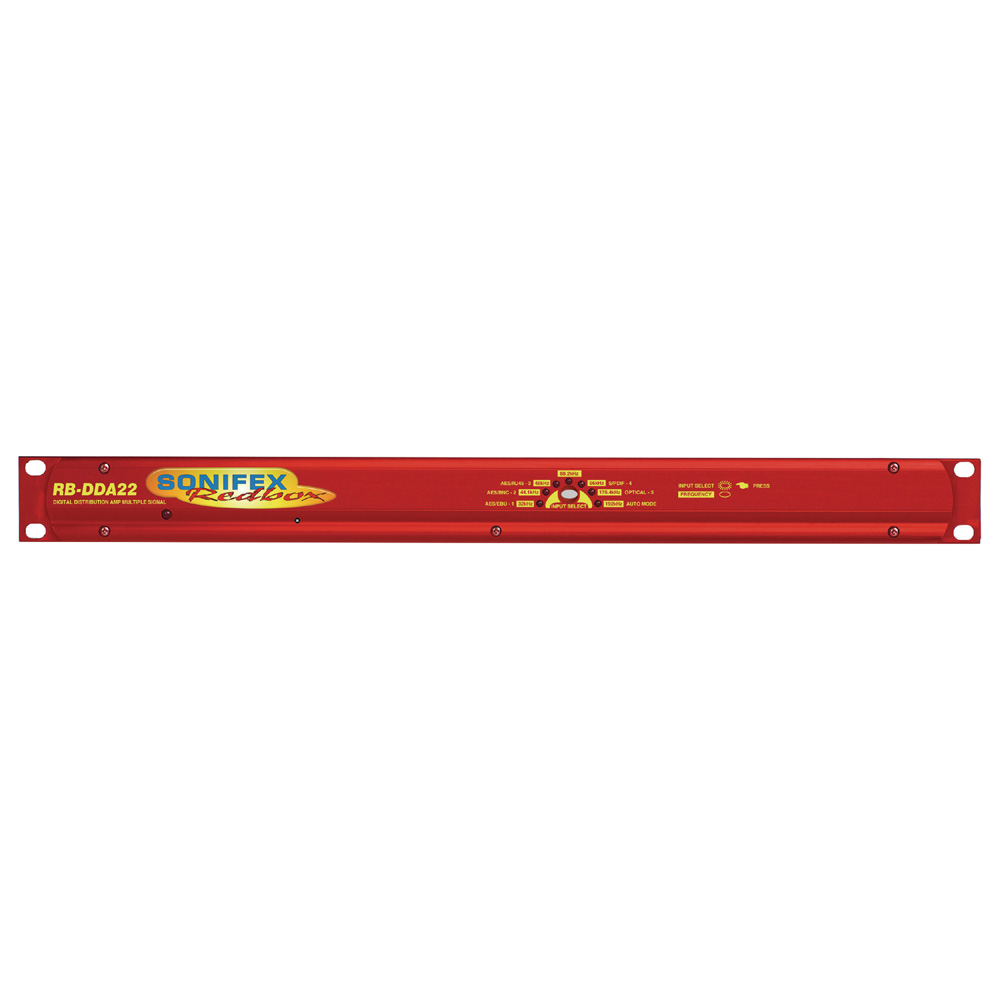

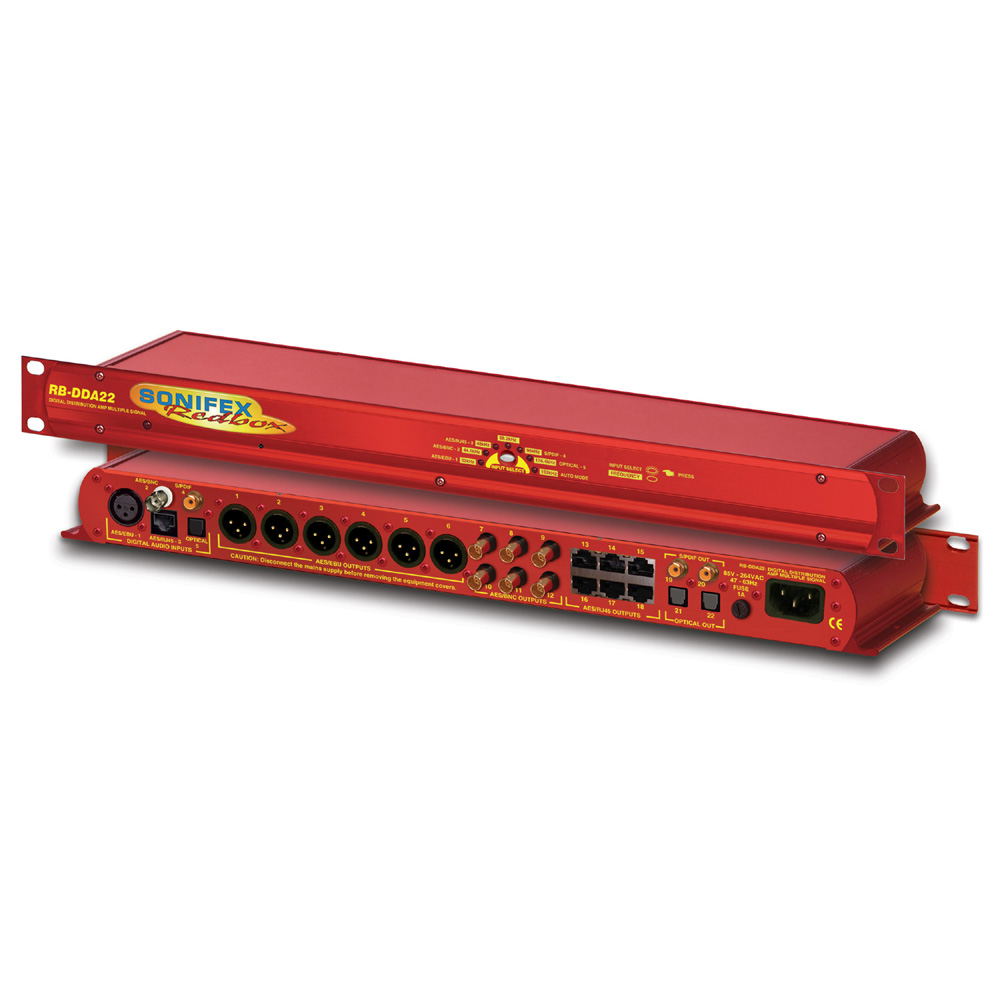

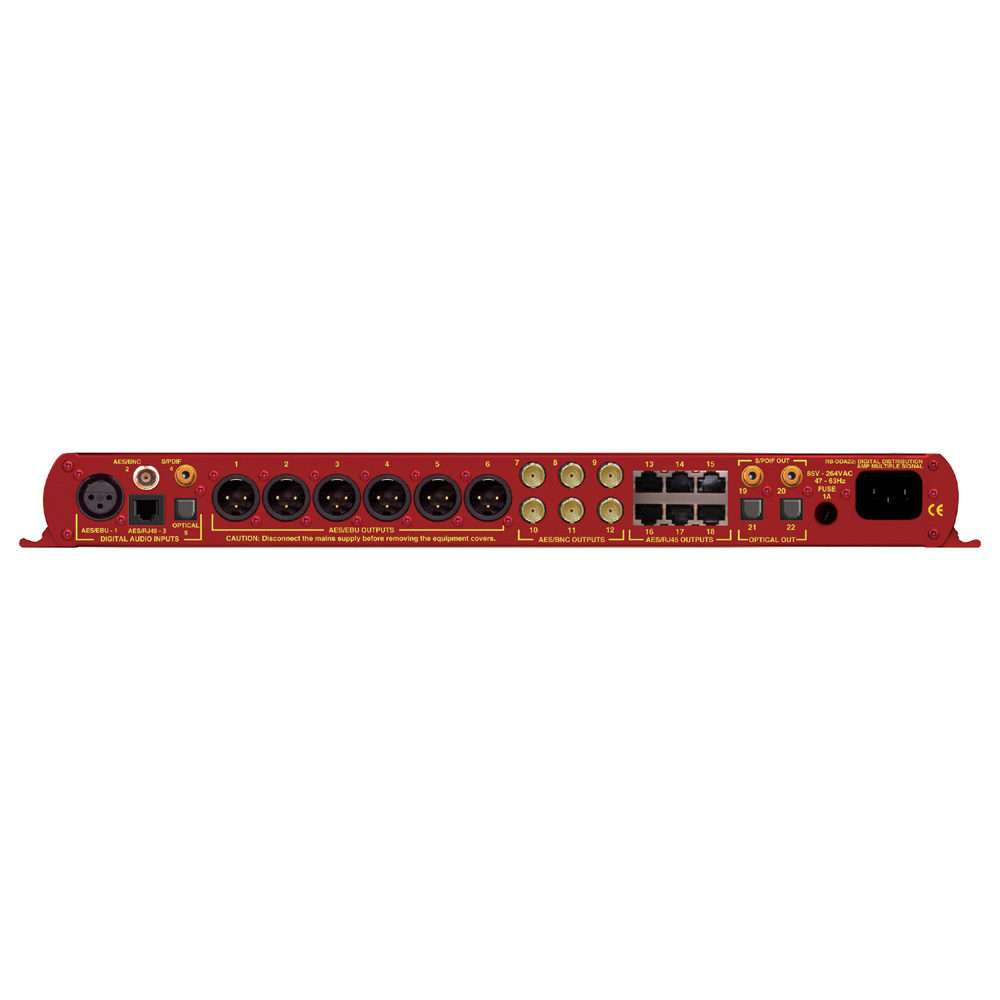

RB-DDA22, 5 - 22 digital distribution. Digital distribution amplifier with 5 inputs and 22 outputs in various formats. Input selector on the front for AES/EBU(XLR), AES3(BNC, AES/EBU(RJ45), S/PDIF(RCA) and TOSlink(optical) with LED indicators for selected input and "signal present". The outputs are reclocked and individually buffered with the right level. 6 x AES/EBU(XLR), 6 x AES3(BNC, 6 x AES/EBU(RJ45), 2 x S/PDIF(RCA) and 2 x TOSlink(optical). Handles signals up to 200kHz / 24 bits Dimensions: 19, 1U Depth: 108 mm.
