Studio Technologies - Model 5532

Model 5532 Programmer and Producer Console with ST2110

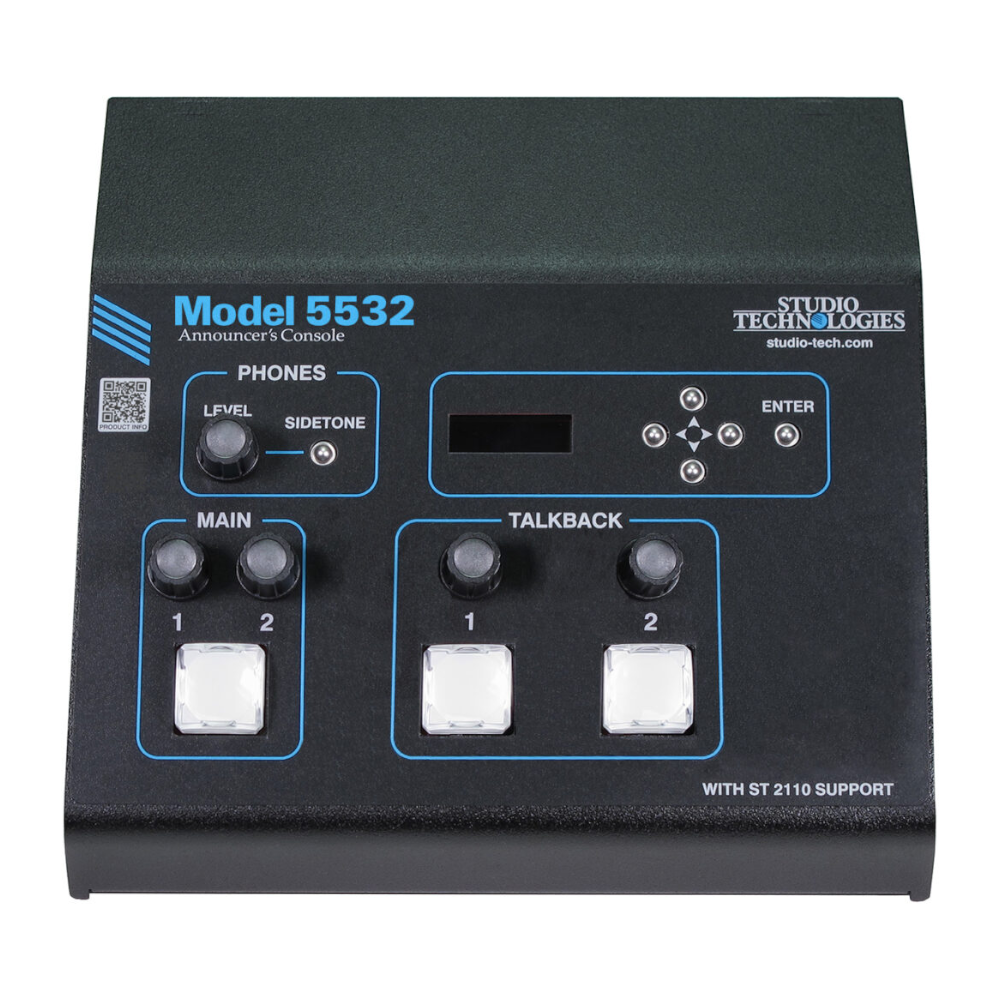

Model 5532 is a compact and robust commentary unit designed for professional broadcast, e-sports and live productions. It combines high audio quality with support for modern network protocols such as SMPTE ST 2110 and ST 2022-7, making it ideal for IP-based productions and REMI/At-Home workflows.

The unit offers a class-leading microphone preamplifier, user-controlled headphone mix, and one main and two talkback channels - all in a convenient format that fits equally well in OB buses and temporary studio setups.

With dual PoE network ports, web-based configuration, and support for NMOS and ANEMAN Audio Network Manager, the Model 5532 is both flexible and reliable in modern production environments.

Key features

• Compact unit for a presenter position
• Microphone preamplifier with selectable gain and P48 phantom power
• One main channel and two talkback channels
• User-controlled headphone mixing
• High quality audio and extensive configuration options
• Support for SMPTE ST 2110
• Support for SMPTE ST 2022-7 redundant streams
• Independent Ethernet interface for control
• Dual power supply via PoE and 12 V DC
• Support for REMI/At-Home applications

AoIP - ST 2110

• Supported conformance levels:
  • A: 48 kHz, 1-8 channels, 1 ms packet interval
  • B: 48 kHz, 1-8 channels, 125 µs packet interval
  • C: 48 kHz, 1-64 channels, 1 ms packet interval
  • AX: 96 kHz, 1-4 channels, 1 ms packet interval
  • BX: 96 kHz, 1-8 channels, 125 µs packet interval
  • CX: 96 kHz, 1-32 channels, 125 µs packet interval
• AMWA NMOS support: IS-04 Discovery & Registration, IS-05 Device Connection Management
• Redundant streams: according to Level B, SMPTE ST 2022-7:2013 Seamless Protection Switching
• Synchronization: according to SMPTE ST 2110-10, Precision Time Protocol (PTP) IEEE® 1588-2008 Version 2
• Compatibility: JT-NM TR-1001
• Control and connection management: web-based interface, NMOS, Merging Technologies ANEMAN Audio Network Manager, and JSON API

Audio performance and transmission

• Audio type: PCM (pulse-code modulation)
• Sampling rate: 48 kHz
• Bit depth: 24 bits
• Number of transmitter channels: 6
• Number of receiver channels: 7

Network interface

• Number: 2 (Primary PRI-PoE and Secondary SEC-PoE)
• Type: 1000BASE-T Gigabit Ethernet (IEEE® 802.3ab)
• Power-over-Ethernet: according to IEEE 802.3af

Analog microphone input

• Compatibility: dynamic or phantom-powered microphones
• Type: balanced, capacitively coupled
• Impedance: 3.6 kΩ (nominal)
• Gain: 20-65 dB in 1 dB steps
• Frequency response: 20 Hz-22 kHz (+0/-1 dB)
• Distortion (THD+N): <0.0004% @ 1 kHz
• Dynamic range: 120 dB (A-weighted)
• Phantom power: P48 according to IEC 61938, on/off selectable with status LED

Limiter function

• Type: digitally controlled analog limiter
• Application: only on analog microphone input
• Threshold: 12 dB above nominal level (-8 dBFS)
• Minimum turn-on time: 30 ms
• Maximum attenuation: 16 dB at ≥36 dB gain

Analog microphone output

• Type: passive, via two 200 Ω resistors
• Mute: solid-state relay, 60 dB attenuation @ 1 kHz

Headphone output

• Type: analog 2-channel (stereo)
• Compatibility: stereo or mono headphones, headset, earbuds ≥50 Ω
• Maximum output voltage: 3.0 Vrms @ 1 kHz, 150 Ω load
• Frequency response: 20 Hz-20 kHz (+0/-1 dB)
• Dynamic range: >102 dB (A-weighted)
• Distortion (THD+N): <0.025% @ 1 kHz

Other features

• Talkback input filter (LPF): digital 8-pole Butterworth filter (-3 dB at 12 kHz)
• Tone outputs: 18 kHz and 20 kHz, -20 dBFS, <0.0001 % distortion
• Tone Detect function: activation via in-band 20 kHz tone, -27 dBFS min
• IFB (headphone dim) function: 15 dB fixed attenuation
• Call Light function: activation via Tone Detect

Remote control inputs

• Number: 4
• Function: can mirror the function of the main and talkback buttons
• Type: active low, 1 mA max, 3.3 V pull-up
• Limitation: Input 2 parts stick with Tally output

Tally output

• Type: active high, 3.3 V DC via 130 Ω resistor (25 mA max)
• Limitation: shares hardware pin with remote control input 2

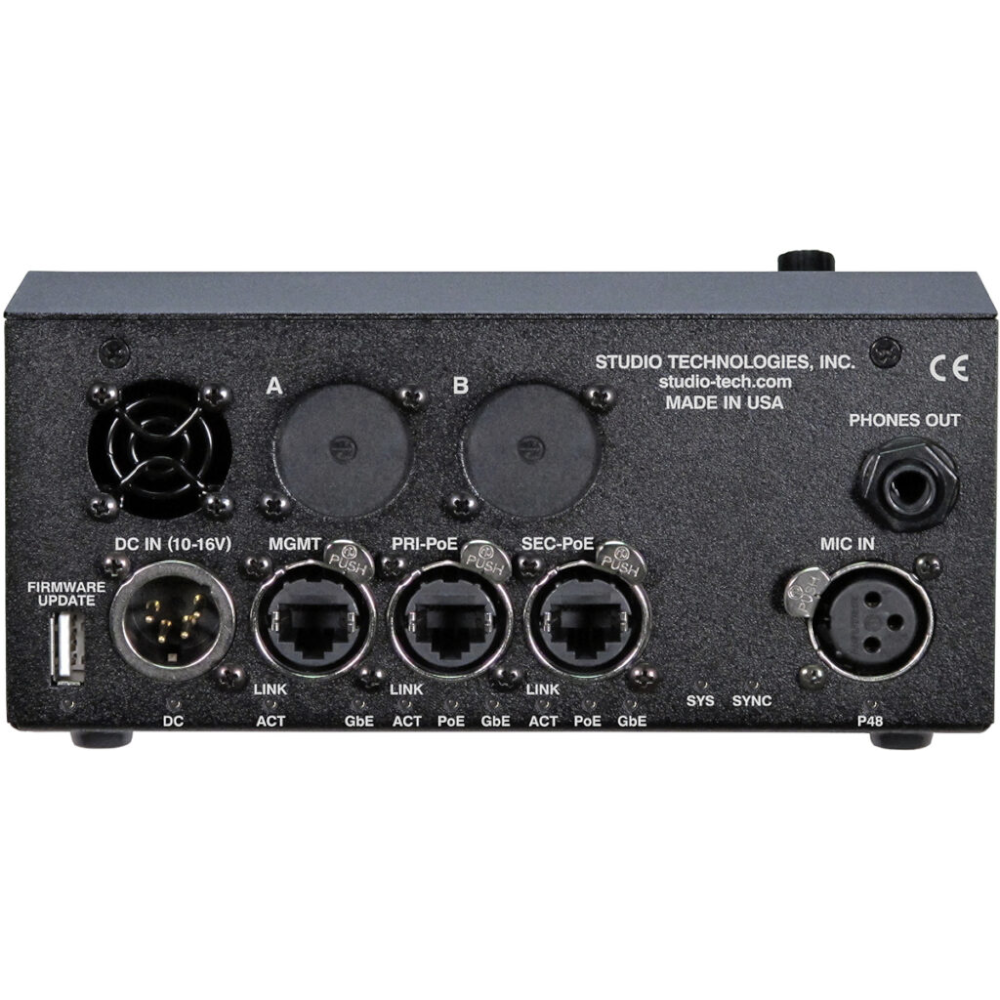

Connections

• Microphone input: 3-pin XLR female
• Headphone output: 6.35 mm (¼") stereo jack
• Ethernet: 3 × Neutrik NE8FBH etherCON (RJ45)
• DC input: 4-pin XLR (pin 1 negative, pin 4 positive)
• USB type A: for firmware update
• Internal connectors for remote control, headphone output, DC and microphone input

Spare connectors

• 2 slots for optional connectors or modules (compatible with Neutrik NC*D-L-1)

Configuration

• Via standard web browser

Power supply

• PoE: Class 3 (≤12.95 W) according to IEEE® 802.3af
• DC input: 10-16 V DC, max 0.7 A at 12 V (optional PS-DC-02 power adapter)

Environment

• Operating temperature: 0-50 °C
• Storage temperature: -30 to +70 °C
• Humidity: 25-85% (non-condensing)
• Height: not specified

Dimensions and weight

• Width: 17.0 cm
• Height: 8.1 cm
• Depth: 15.5 cm
• Weight: 1.1 kg

Placement

• Intended for table application

Optional

• Power supply PS-DC-02 (100-240 V, 50/60 Hz; 12 V DC, 1.5 A), sold separately
