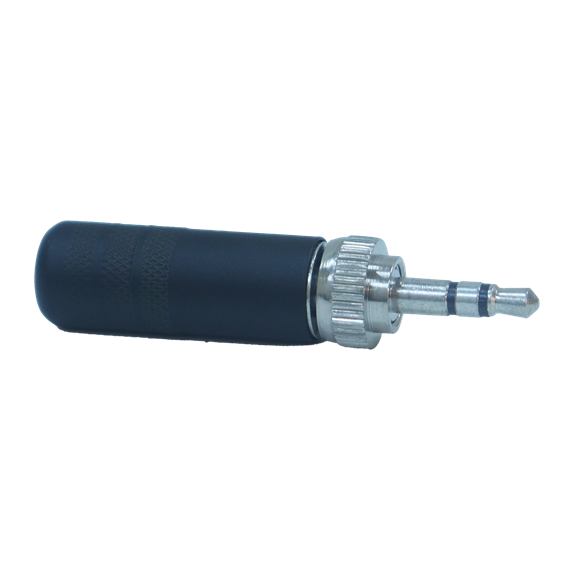

Switchcraft - 3.5mm tele jack with locking ring
€18
3.5mm telephoto tap with locking ring, works on, for example, the Sennehiser EW series.
- Fast Deliveries!
- Any Questions? We will help you!
- Multiple payment options!
- BrandSWITCHCRAFT
Description
Article no.: 175-6310
35HDLBN
3.5MM (1/8" mini) Locking Stereo Plug, black handle, tin plug, 0.290" cable opening
Configuration
- Number of Conductors: 3
- Product Line: 35HD
- Mounting Type: Cord
- Termination Style: Solder
- Color: Black
- Locking: Locking
- Sealed: Not Sealed
- Packaging Type: Bulk
- Standard Connector Type: 3.5mm Jacks & Plugs
- Jack-Plug Type: Plug
Electrical
- Contact Resistance: 0.02 Ohms
- Dielectric Withstanding Voltage: 250 Volts
- Insulation Resistance: 2000 MOhms
- Voltage Rating: 250 Volts
- Current Rating: 4Amps
Mechanical
- Life Cycle: 5000 Cycles
- Operating Force: 2.5 lbs
- Coupling Locking Style: Threaded
Environmental
- Temperature Range: 0Cto +66C
- Shielding: Shielded
- Mechanical Shock: MIL-STD-202F Method 107G
- Vibration: MIL-STD-202 Method 201
- Maxiumum Temperature: 66 C
Compliance
- RoHS Compliant: Compliant
- REACH Compliant: Compliant
- Brand: Switchcraft
Dimensional
- Cable Opening: 0.29 in
Material
- Contact Plating Type: Tin
- Terminal Material: Copper Alloy Tin-Plated
- Sleeve Material: Copper Alloy
