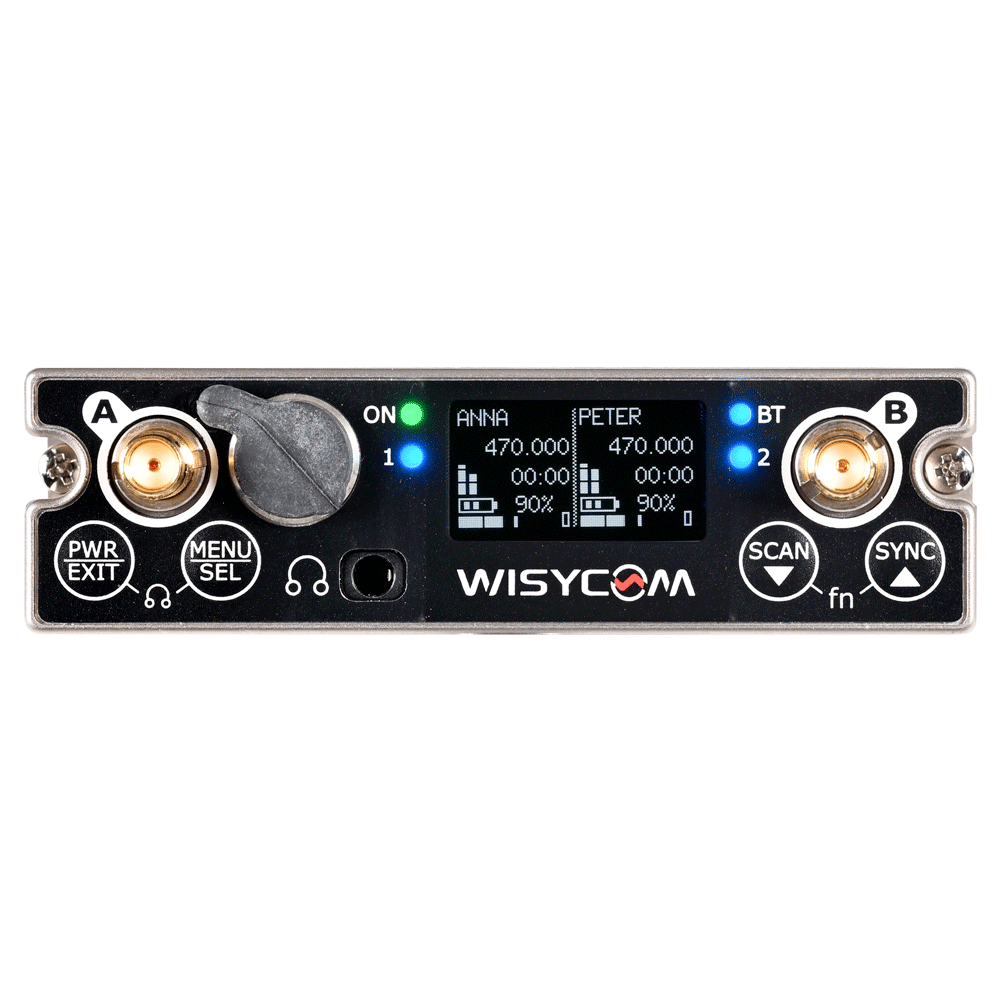

Wisycom - MCR54-DUAL

MCR54-DUAL är en tvåkanals true diversity trådlös mottagare i slot-in format. Den är kompatibel med de flesta kamera- eller antenndistributions slot-in-system.

Observera att den inte kommer med något bottenstycke. Detta måste köpas till separat.

• Två kanaler true diversity (fyra mottagarkort!)
• Exeptionelt kompakt format
• DSP analog & aigital ljudutgång (AES3)
• Upp till 790 MHz bandbredd
• Next Gen Multiband front-end filtering:
  • High Q electronically tunable filter in 470-800 MHz
  • 1st narrowband filter
  • 2d narrowband filter
• Wideband and Narrowband DSP-FM operation (SW selectable):
  • Narrowband allows more 50% band efficiency
  • Narrowband allows about 3dB extra sensitivity and noise immunity
• Extreme low noise VCO with ultrafast spectrum scan for optimal quick & easy setup
• High contrast OLED display
• Automatic scan & transmitter programming through infrared and Bluetooth 5 long range
• DSP based for extreme flexibility and multi-companding operations
• Monitor & control through USB C or Bluetooth 5 (long range) on Wisycom Manager 2.0 (computer SW)
• Rear antenna connectors and micro audio and power adapter

Our new UN “Ultrasonic Narrowband” technology, allows:

• Absolute protection from Ultrasonic interference (e.g. next-gen camera range trackers) thanks to a dedicated 70 dB filter
• Narrowband operations, to operate using half of the bandwidth and have an extra 50% range.
• Commute by SW to a wideband mode for compatibility with legacy Wisycom system

All of this with our pristine audio quality:

MAIN FEATURES:

• It provides the widest switching bandwidth available, up 232 MHz range to find the best frequency, anywhere in the World.
• It mount the best selective audio filter to avoid any ultrasonic interference
• Advanced linear technology eliminates intermodulation distortion for more robust signal, extended range, and the ability to operate several transmitters within closeproximity to each other.
• The combination of Narrowband and Linear transmitters allow you to tune every 200kHz and the reduced RX bandwidth gives 3dB uplift in sensitivity.
• Switching by SW in “wideband” mode”, MTP40S-UN mantains full compatibility with all previous Wisycom legacy receivers
• The transmitter is designed for maximum performance with minimal power consumption which generates less heat – it is always comfortable to wear or operate.
• ENC and ENR algorithms for perfect audio in any application almost delay free with create and shape presets for the desired sound.
