Beskrivning
Art.nr: 560-1010
Både högtalaren och hörlursutången har individuella inställningar för volymen och Line- och AES-utgångarna kan konfigureras med individuell volym, eller följa nivån på högtalare eller hörlursutången.

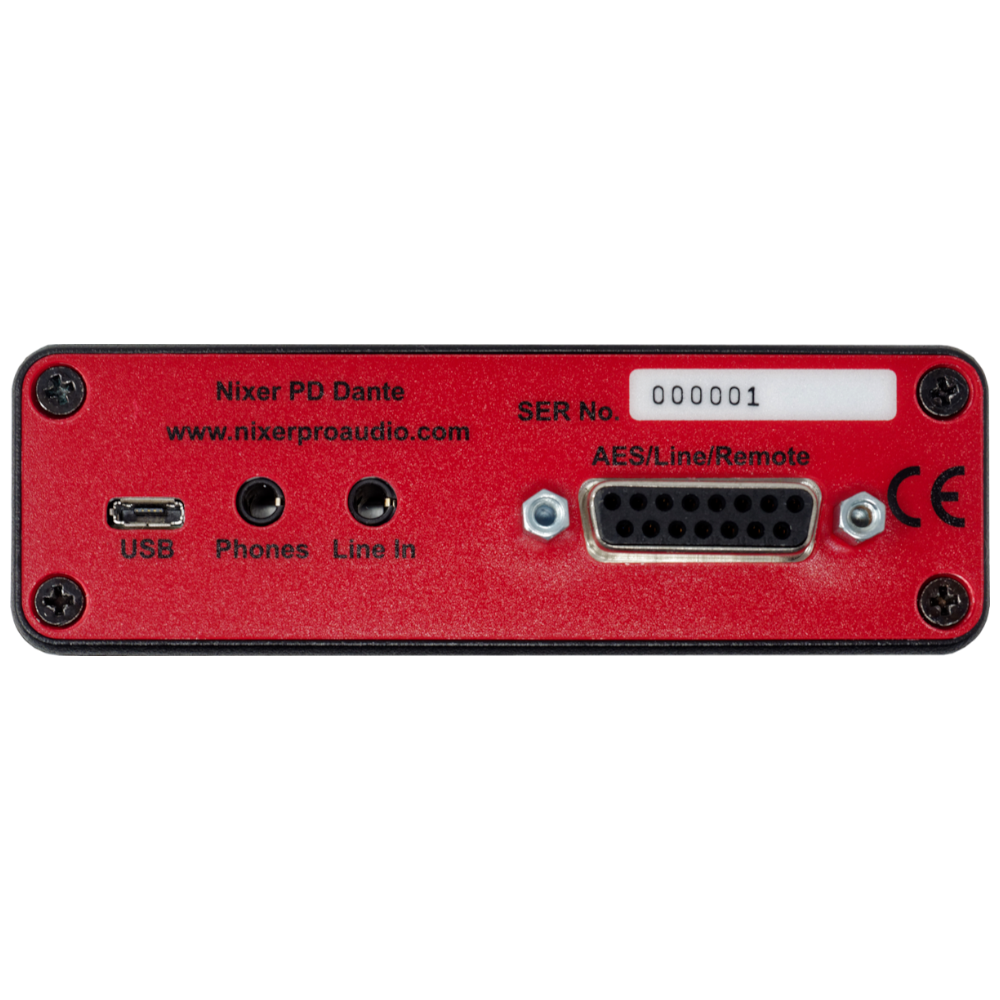

Ingångar finns som obalanserad stereo line in via ett 3,5mm telejack, som AES via D-SUB-kontakten och en micingång via hörlursutgången som fungerar som ett vanligt mobilheadset. Alla ingångar kan routas till valfri Dante-utgång.

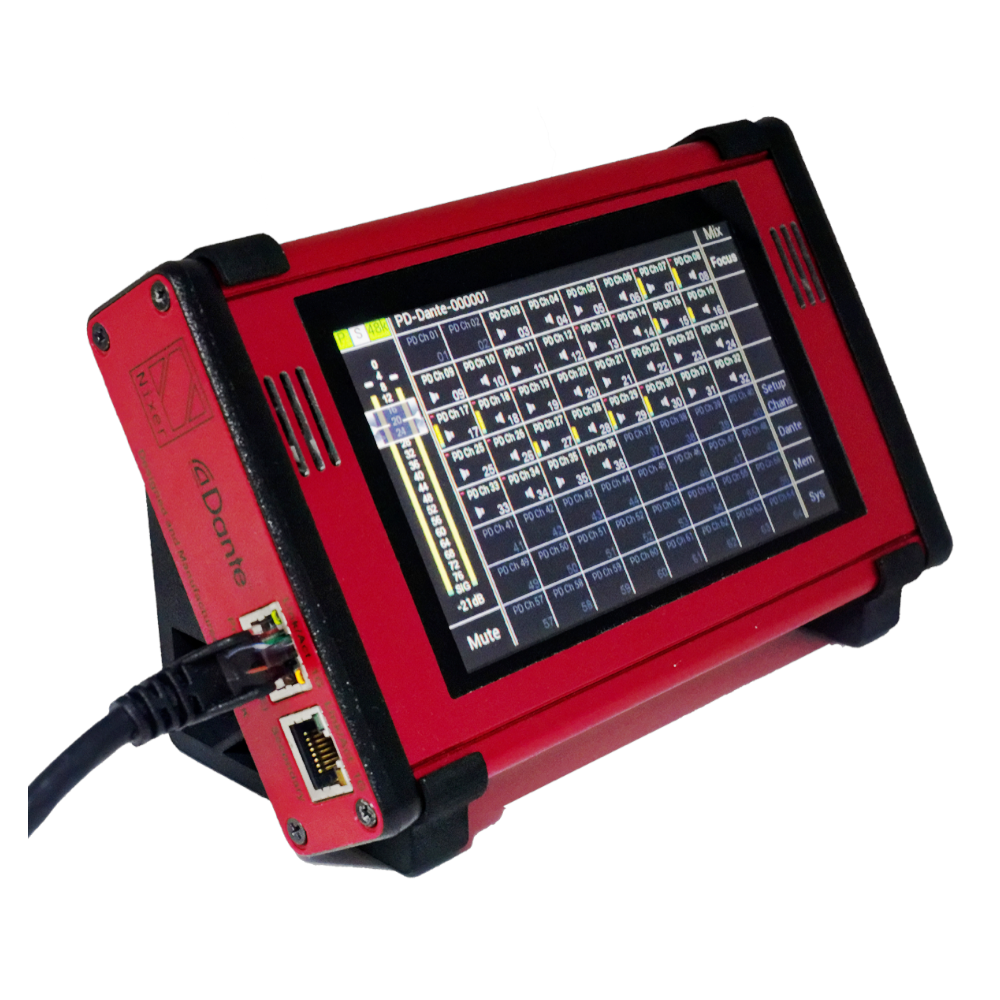

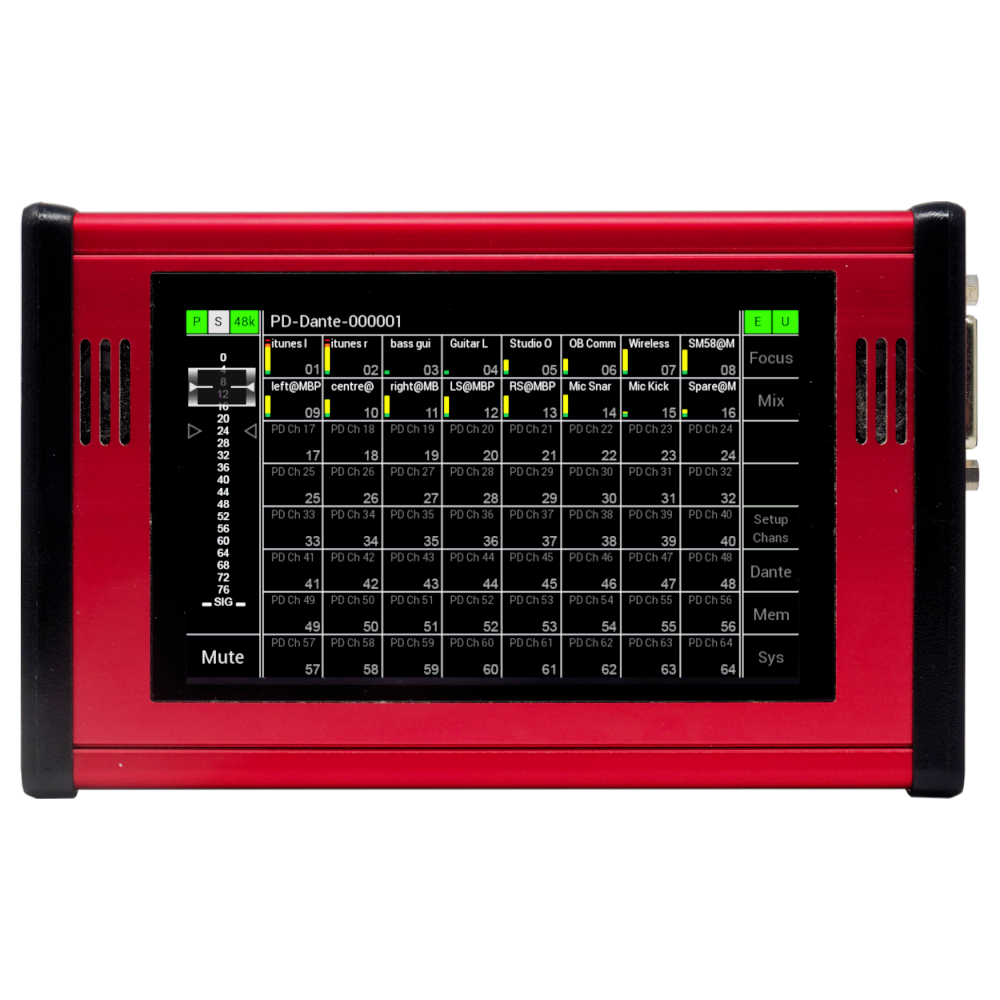

Enheten kontrolleras via en stor 5-tums LCD kapacitiv touchskärm och menyerna är både enkla och intuitiva.
PD Dante strömmatas antingen via PoE (13w eller via 1,5A USB.
1 Monitoring of 64 Dante channels at 48kHz (32 channels at 96kHz)
2 Output up to 64 Dante channels at 48kHz (32 channels at 96kHz)
3 Sample rates supported
- 44.1kHz
- 48kHz
- 88.2kHz
- 96kHz
4 Bit Depth supported
- 16bit
- 24bit
- 32bit
5 Dante implementation supports
- Dante Controller
- Dante Domain Manager
- AES67
- SMPTE 2110
- Remote setup of other Dante devices connected to the same network with controls for
- Network settings
- Routing
- Sample rate
- Device name
- Identify
6 Two main modes of operation
- User defined mix to L and R output
- 8 User memories with customizable names
- PFL mode where selected channel is sent to LR with two modes
- Auto cancel previous selection
- Additive with Clear button
7 64 channel meters
- High resolution meters
- Optional Peak indicator with user definable trigger level
8 Main LR meters
- Large high-resolution meters displaying 0dBFS down to -60dBFS in 1dB steps
- Optional Peak hold
- Optional Working level indicator with user definable level
9 Internal 2W/channel amplifier feeding either
- 2x Internal speakers
- Headphone output
10 Dual Balanced Line Outputs 0dBFS = +21dBu maximum output into 600ohms on 15way D-type connector
- Fed from main Stereo LR bus
- Option to follow main volume control
- User adjustable trim (0dB to -60dB in 1dB steps)
- Output Mute relays
11 Stereo AES output on 15way D-type connector
- Fed from main Stereo LR bus
- Option to follow main volume control
- User adjustable trim (0dB to -60dB in 1dB steps)
12 Stereo AES Input on 15way D-type connector
- User selectable routing to Dante output(s)
13 Stereo unbalanced line input on 3.5mm stereo jack
- with input level trim control suitable for use with common music playback devices such as, iPods, iPhones, MP3 players
- max input level +8.5dBu
14 3.5mm Headphone socket and microphone input
- Headphone output for driving loads from 8ohm to 600ohm
- Microphone input with gain control (up to 40dB) and level trim
- Socket wiring is suitable for use with most common mobile phone headsets

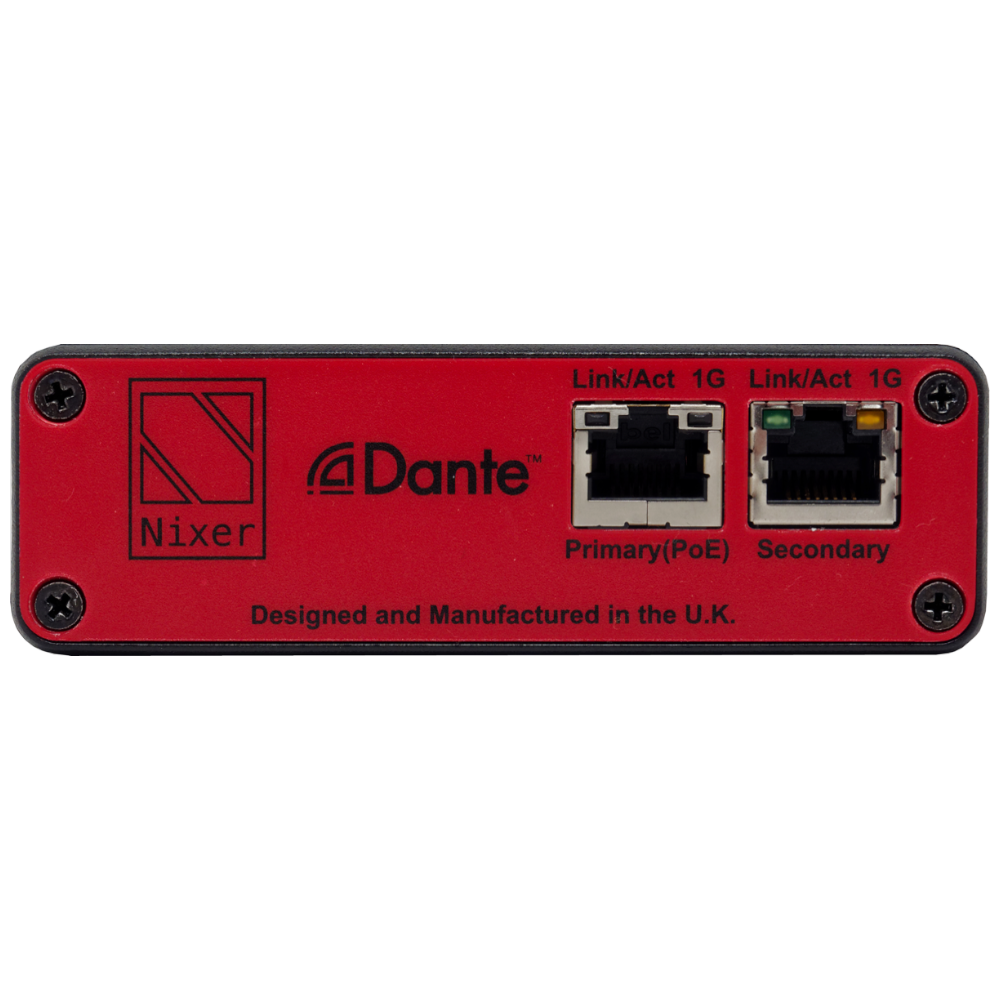

15 Dual 1Gbps RJ45 Dante inputs
- 1Gbps or 100Mbps operation
- User configurable for Switched or Redundant operation
- Network configuration information available via menu
16 Power input via
- PoE (13W) on Primary RJ45 connector
- USB input (1.5A) auto negotiates with connected USB port
- Direct from Mac/PC USB connector capable of delivering 1.5A
- USB mains adaptor
- USB battery pack
- Both power inputs can be active at the same time for redundancy
17 USB port is also used for product firmware updates
18 Wired remote control option on 15way D-type connector
- RS485 balanced TX and RX pairs
- 5V feed to connected device (up to 300mA)
19 Internal oscillator with selectable routing to Dante output(s) and level control
- Sine/Square/Triangle Wave generation settable to a frequency of 50Hz, 100Hz, 200Hz, 500Hz, 1kHz, 2kHz, 5kHz and 10kHz
- White Noise Generator
- Pink Noise Generator
20 LCD
- 5.0” (127mm) diagonal 24bit colour LCD with 800xRGBx480 resolution
- LED backlight (adjustable brightness via software)
- 5-point touch capacitive touch overlay with gesture support
21 Size
- 173mm long by 106mm wide by 34mm height
- 0.5kG
- Optional mounting brackets
22 Optional Case
23 Optional breakout connector for 15way D-type connector
