Bluefin - 10.1" Finished LED OCEAN / Intel Touch

DISPLAY

10.1'' LED Screen
Resolution: 1280x800
Max Brightness: 400 nits
Viewing Angle: 89/89/89/89
Contrast: 800CR
Optional: Capacitive Touch

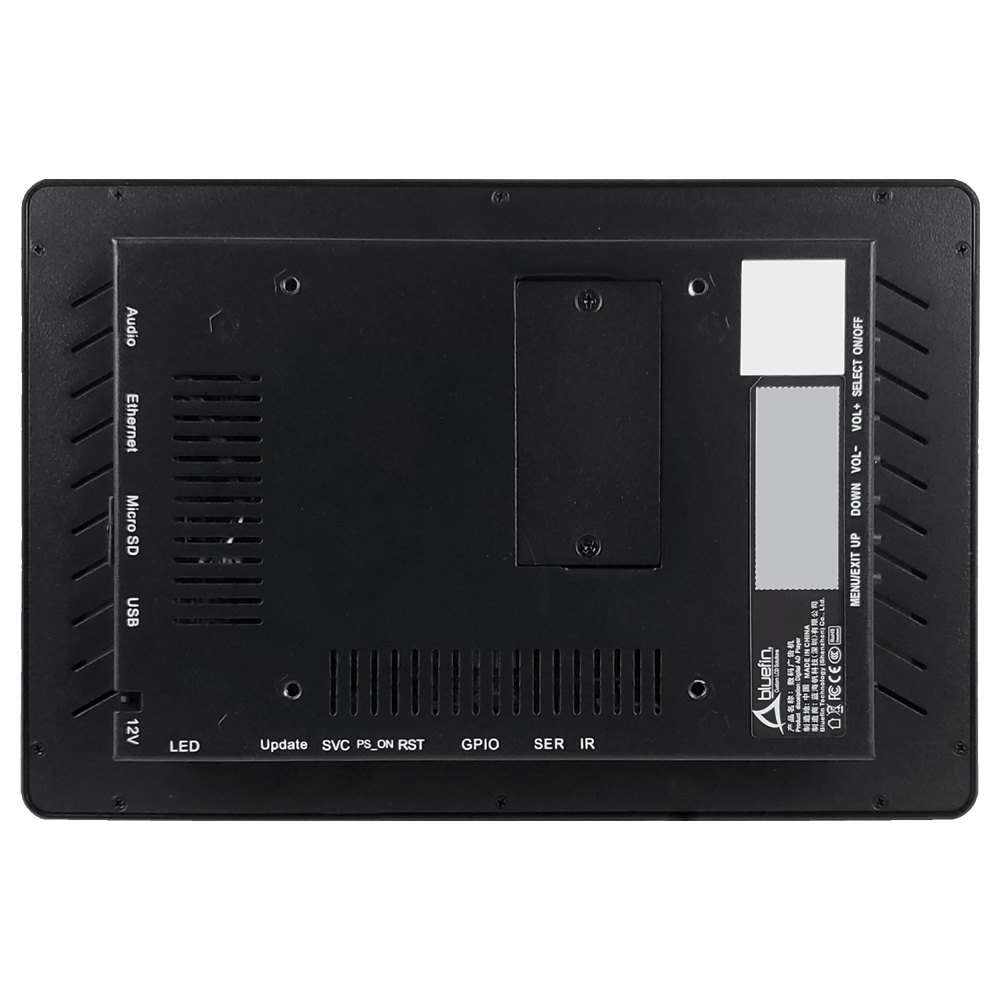

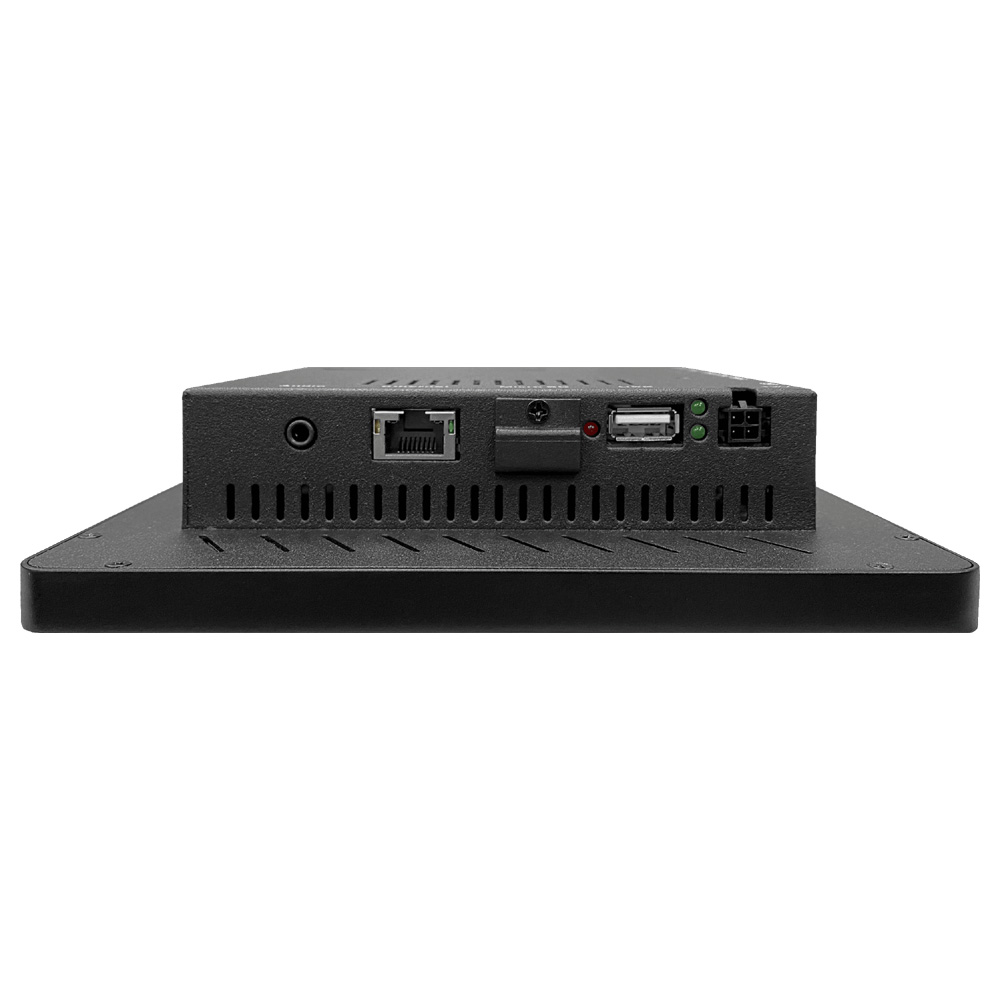

INPUT / OUTPUT

1x Micro-SD
1x USB 2.0
Phoenix GPIO (4-pin Bi-Directional)**
3.5mm RS232 Serial**
RJ45 Ethernet
2x Stereo 3W Speakers (Finished Units Only)**
3.5mm Analog/Digital Audio Out
Optional Wi-Fi

SYSTEM

Bluefin Intel Ocean

System
GPU: Intel UHD Graphics
▪ Gen 12 video decode engine
▪ Decoding: HEVC / H.265 / VP9 / AV1 4K@60fps
Memory: 8GB LPDDR5 4800MT/s (optional 4GB / 16GB)
Storage: Onboard eMMC 5.1 128GB (optional 32GB / 64GB)
TPM 2.0
Real-time Clock
Operating Systems: Windows 11, Windows 10, Linux (64 bit), Chrome OS Flex
CPU
Intel Processor N97
▪ Max Turbo Frequency: 3.60GHz
▪ Cores: 4
▪ Instruction Set: 64 bit
▪ TDP: 12W
Maximum Ratings
Operating Temp: 0-50C
Humidity: 90% at 50C
Network
Gigabit ethernet
Optional Wi-Fi / Bluetooth
Input / Output
1x USB 2.0
1x micro-SD
1x RS-232 Serial

HOUSING / MOUNTING

Finished

Size: 9.8'' x 6.7'' x 1.6''
Weight: 2.76 lbs (1.25kg)
Mounting: VESA 100x100mm M4x4mm

POWER

Adapter Style: Micro Molex
Adapter Output: 12V 2A
Optional Power over Ethernet
PoE 802.3at (30W)
